4U Rack Mount Server Intel Q670 chipset ZPC-610,
Support Intel 12th//14th Gen Core Processor LGA1700,
and Support 4*DDR4/DDR5 Ram，Max 128G,
1*M.2 Key-M SSD, 2*2.5”/3.5” HDD.
| System Parameter | |
| Model | ZPC-610（Q670） |
| Processor | Intel Core i3 -12100T, (quad cores, 8 threads，2.2 GHz, Turbo boost 4.1 GHz) |
| Intel Core i5-12400T . (6 cores, 12 threads，1.8 GHz, Turbo boost 4.2 GHz) |
|
| Intel Core i5 14600K. (14 core, 20 threads，2.6 GHz, Turbo boost 5.3 GHz) |
|
| Intel Core i7-12700T, (12 cores, 20 threads，1.4 GHz, Turbo boost 4.7 GHz) |
|
| CPU Structure | Intel Q670 |
| Memory | 4*DDR4/DDR5 3200 DIMM，Max:128GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel HD Graphics 730/770 |
| Display port | 1*VGA，1*DVI-D，1*HD, （synchronous and asynchronous dual display） |
| Front I/O | 2*USB2.0，2*LED，1*Power Switch，1*Reset |

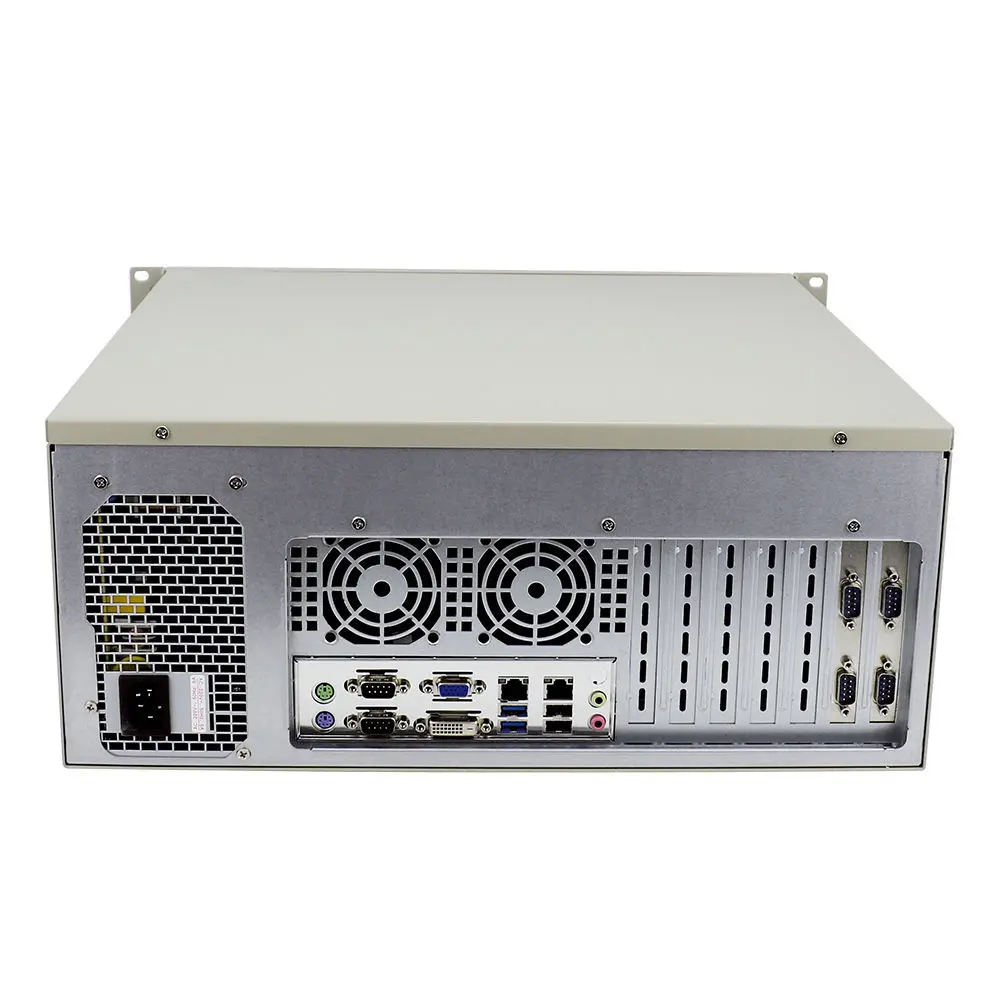

| Rear I/O | 6*USB3.0，2*Intel LAN，1*VGA， 1*DVI-D，1*HD, 1*PS/2，3*Audio， 6*COM（COM3 RS232/485 optional, COM4 RS232/485/422 optional） |
| Expansion Slot | 2*PCIE X16(1*PCIe x16 Gen4 or 2*PCIe x8 Gen4) , 4*PCIE X4( Gen4), 1*PCI |
| 1*M.2 2230(Key-E support Wifi/BT), SIM Slot |
|
| 1*M.2 (Key-M, 2242/2280, PCIe x4 Gen4 NVMe/ SATA SSD) |
|
| Expansion Port | 8-way GPIO interface, 2*USB3.0, 2 USB2.0 (standard shipment does not have these interfaces) |
| Network | 8-way GPIO , 2*USB3.0, 2 USB2.0 (standard shipment does not have these interfaces) |
| Storage port | 1*M.2 Key-M SSD, 3*2.5”/ 2*3.5” HDD+2*2.5’’ HDD fixed position |
| Power Supply | AC 100～230 V（50～60Hz）， 500W Rated Power |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Automation，Machine Vision， Transportation，Medical，Monitor etc |
| Structure Parameter | |
| Color | White（any color can be customized） |
| Material | High no flower galvanized sheet |
| Size | 428 * 450 * 177.6 mm, 【not include wall bracket】 |
| Weight | 11.5 kg【Barebone】 |
