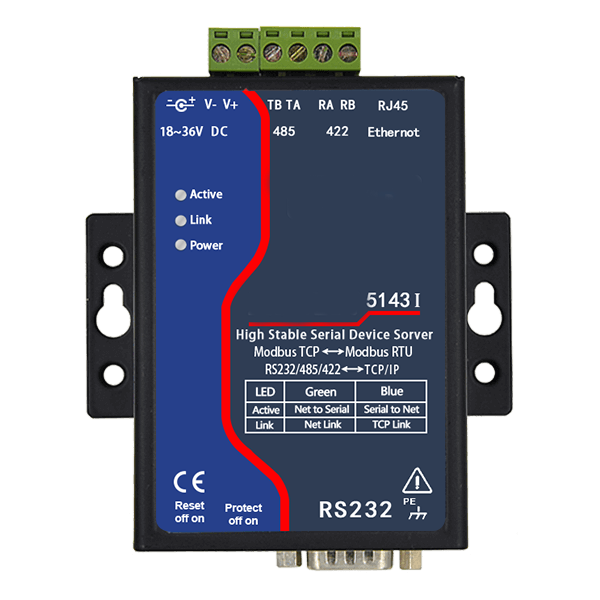

5143I Fully isolated serial port server Modbus gateway,
5143I is a high reliability and high performance serial device server and Modbus Gateway product designe by Shanghai ZLAN special for lightning resistance, anti-electromagnetic interference and resisting bad environment requirements, is the flagship product on serial device server. Can applie to industrial application requiring anti-jamming, anti-tunnel monitoring, wind power, field geological disasters monitoring and so on.
ZLAN5143I has good interface isolation characteristic. The RS485/422 not only have ±15V antistatic, but also have 2500V interface isolation, as adding 2500V AC voltage between RS485 wire and shell, the current leakage into ZLAN5143 is less than 5 mA.
The RS485 of ZLAN5143I can drive 256 load capacity, compared to the product driving 32 loads, it can achieve the ability of monitoring more equipment to save cost.ZLAN5143I has three interface types: RS232/485/422. The input voltage can provide DC Q2. 1 jack or terminal type, the input voltage is 18~36V (can be customized 12V). It can equippe with guide installation accessories.
