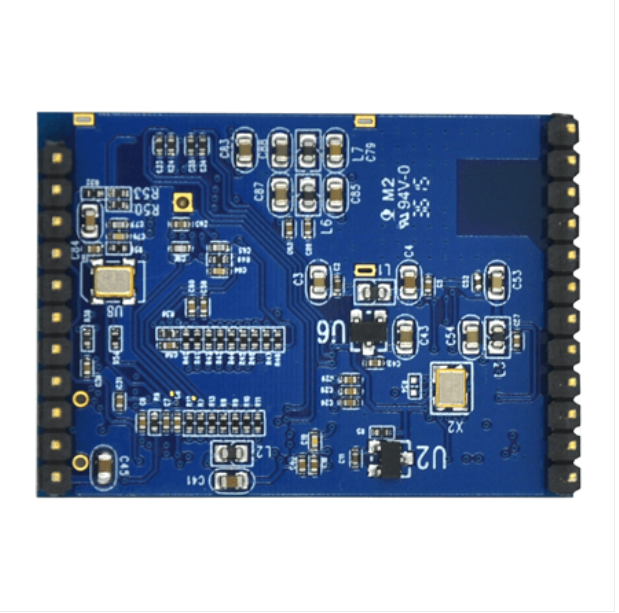

7004 High-performance Wifi Ethernet to serial port module,
High-performance Wifi, Ethernet to serial port module developed by Shanghai ZLAN. Unlike the ordinary wifi module, which is positioned at low cost, the 7004 is positione at high stability and rich functions, and the design goal is to face the industrial field with high requirements for function and stability.
7004 continues Shanghai ZLAN’s more than 10 years of product design experience and software technology accumulation in the field of TCP/IP to serial port. The software system is similar to ZLSN2002 Ethernet to serial port products, and has the same stability and rich functions as ZLSN2002.
7004 adopts 11 +12 double row pin structure, compatible with ZLSN2002, voltage supply is 3.3V. The serial port connecte to the TTL level serial port of the user device through the RXD, TXD, and GND of the 3-pin UART, and the other end is connecte through wifi or Ethernet. wifi supports STA mode to connect to a wireless router, or AP mode to allow wifi devices such as mobile phones to connect. The module does not contain a network transformer, and the user can use the RJ45 containing the network transformer to connect directly with the Ethernet interface of the module.
ZLSN7004_en can use in security monitoring, smart grid, factory automation, energy environment testing, intelligent transportation, smart home and other fields. Instantly upgrade your system from serial to WIFI.
