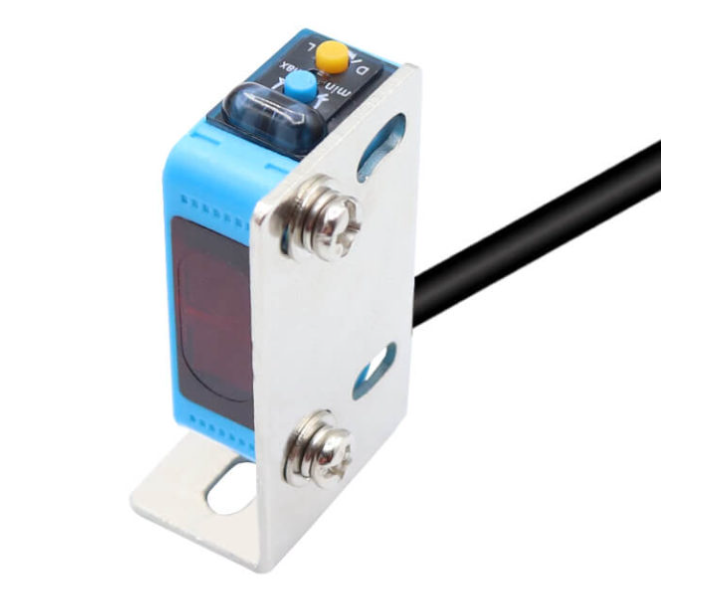

AE3Z-D81 Diffuse Photoelectric Sensor,
| Type and Specification | |||
|---|---|---|---|
| Type | Square type | ||
| Dimension | 31*20*10.8 | ||
| DC type | NPN | NO | AE3Z-D61 |
| PNP | NO | AE3Z-D81 | |
| Detection range | 5-100mm | ||
| Detection target | Transparent/opaque object | ||
| Detection range regulation | setting | ||
| Response time | 1ms | ||
| Connection delay | 1.5ms | ||
| Light source | Infrared light 660nm | ||
| Power supply | DC type: DC 12-24V (6-36V), impulse (p-p) 10% below | ||
| Withstand voltage | AC1000V 50/60Hz 1min between charging part and housing | ||
