All aluminum alloy structure Wide Voltage Fanless Industrial PC All aluminum alloy structure IBOX-706 Pro
| System Parameter | |
| Model | IBOX-706 Pro |
| Processor | Onboard Intel Core i5-7360U（Dual Core 4 threads， 4MB three-level buffer， frequency 2.3GHz，Turbo 3.6GHz） |
| Chip | Intel HD Graphics 640 Chip |
| Memory | Support 1*DDR4 1866/2133 SODIMM memory slot， Max. 16GB |
| BIOS | AMI EFI BIOS |
| Display port | 1*VGA，1*HD, （Supports synchronous and asynchronous dual display） |

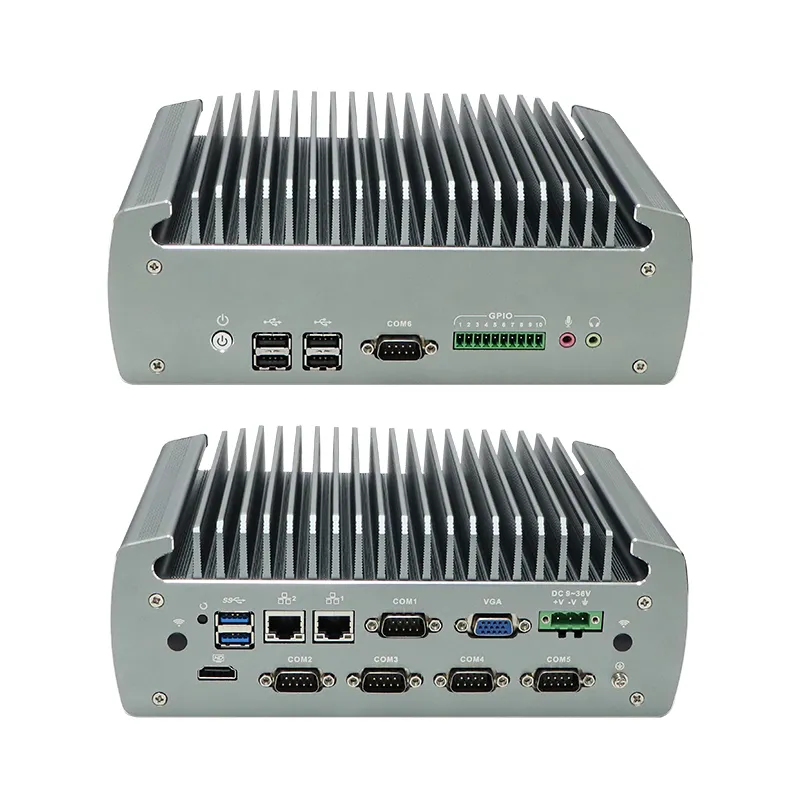

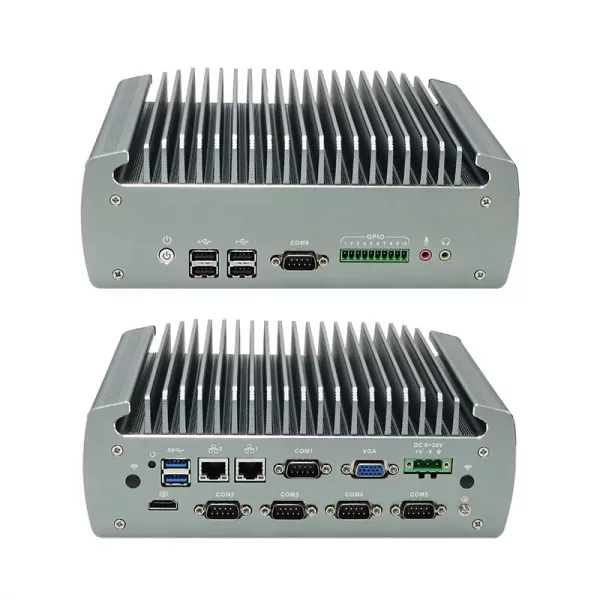

| Front I/O | 1*power button，4*USB2.0， 1*COM，8 bits GPIO Phoenix， 1*Mic，1*Line Out |
| Rear I/O | 2*USB3.0，2*Intel i210/i211-AT 10/100/1000M port， 1*VGA，1*3P Phoenix for power supply 1*COMS，1*HD，5*COM, |
| Expansion slot | Support 1*MINI PCIE slot, （WIFI/3G/4G are optional）， with SIM card slot Support 1*MINI PCIE slot, Expansion（the standard is without it）：1*USB2.0 |
| Network | 2*Intel i210/i211-AT 10/100/1000M network |
| Storage | Support 1*MSATA slot， onboard 1*2.5inch HDD/SSD |
| Input voltage | DC 9 – 36V wide voltage input， Support positive and negative electrode protection |
| Other functions | Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、 Watchdog（0～255 level） |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Dark grey（Colors can be freely customized） |
| Material | High-quality all aluminum， surface anodic oxidation |
| Size | 230 * 155.5 * 84 mm, 【not include wall bracket】 |
| Weight | 2.41 kg【not include wall bracket】 |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +60℃（Industry SSD）， Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
