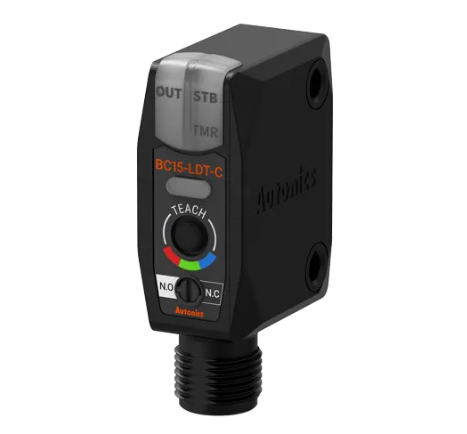

AUTONICS BC15-LDT-C-P,
Data sheet Print
| Sensing type | Convergent reflective type |
|---|---|
| Sensing distance | 15mm |
| Sensing target | Color(opaque,translucent Material) |
| Light source | Full Color LED(red, green,blue) |
| Response time | 500㎲ |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | 3-level |
| Operation mode | color only,color + intensity |
| Control output | PNP open collector |
| Timer function | Timer Function |
| Connection type | Connector type(M12) |
| Environment_Ambient illumination | Incandescent lamp: Max. 3,000lx |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 75℃ |
| Protection structure | IP67 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% of sensing distance(may vary by sensing mode or sensitivity) |
| Spot size | 1.24×6.7mm(rectangular) |
| Sensing mode | C(color only) mode, C+I(color + intensity) mode |
| Output mode | Color match output, color mismatch output |
| External input | External SET cable input |
| Material | Case: polycarbonate, Sensing part: acrylic, Bracket: stainless steel 304 , Bolt: carbon steel |
| Accessories | Bracket, Fixing bolts: 2 , Adjustment screwdriver: 1 |
| Weight | Approx. 80g(approx. 14g) |
