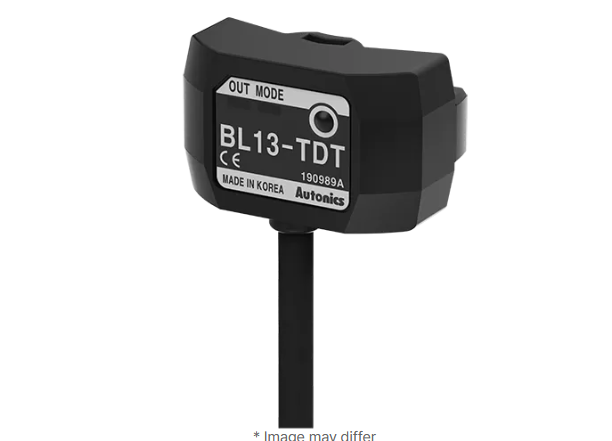

AUTONICS BL13-TDT-P,
Data sheet Print
| Sensing type | Through-beam type |
|---|---|
| Applicable pipe | Using binding band: Ø6 to 13mm, Using protection bracket: Ø12.7mm (1/2 inch) transparent pipe in 1mm thickness (FEP (fluoroplastic) or with equivalent transparency) |
| Standard sensing target | Liquid in a pipe |
| Light source | Infrared LED(950nm) |
| Response time | Max. 2ms |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Operation mode | Light ON/Dark ON(set by button) |
| Control output | PNP open collector |
| Connection type | Cable type(Ø2.5, 1m) |
| Environment_Ambient illumination | Sunlight/Incandescent lamp: Max. 3,000lx for each(received illumination) |
| Environment_Ambient temperature | 10 to 55℃ |
| Protection structure | IP64 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polycarbonate |
| Accessories | Binding band: 2, Anti-slip tube: 2 |
| Weight | Approx. 50g(approx. 13g) |
