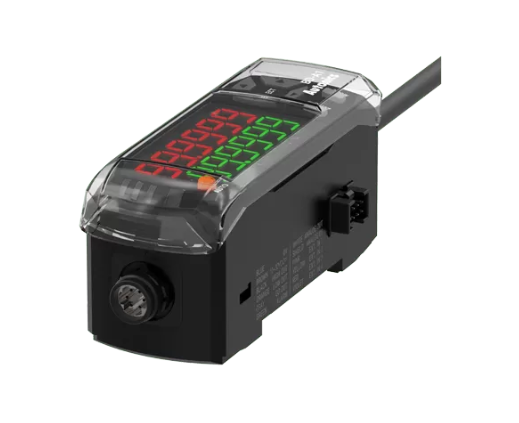

AUTONICS BD-A1,
- Power consumption : Max. 2800mW (30VDC
) - Control input : No-voltage input
- Judgment output : NPN or PNP open collector output (Load current: Max. 100mA)
- Alarm output : NPN or PNP open collector output (Load current: Max. 100mA)
- Analog voltage output : -5 – 5 V, 0 – 5 V, 1 – 5 V (resistance: 100 Ω, ± 0.05% F.S., at 10 V)
- Analog current output : ) 4 – 20 mA (load resistance: ≤ 350 Ω, ± 0.2% F.S., at 16 mA)
- Residual voltage : NPN: Max. 1.5V, PNP: Max. 2.5V
Data sheet Print
| Power voltage | 10-30VDC ±10% (When connecting BD-C Series communication converter, 12-30VDC) |
|---|---|
| Power consumption | Max. 2800mW (30VDC) |
| Control input | No-voltage input |
| Judgment output | NPN or PNP open collector output (Load current: Max. 100mA) |
| Alarm output | NPN or PNP open collector output (Load current: Max. 100mA) |
| Analog voltage output | -5 – 5 V, 0 – 5 V, 1 – 5 V (resistance: 100 Ω, ± 0.05% F.S., at 10 V) |
| Analog current output | ) 4 – 20 mA (load resistance: ≤ 350 Ω, ± 0.2% F.S., at 16 mA) |
| Residual voltage | NPN: Max. 1.5V, PNP: Max. 2.5V |
| Protection circuit | Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit |
| Response time | 0.33, 0.5, 1, 2, 5 ms (5-step adjustment) |
| Min. display unit | [BD-030 / 065 / 100] 1 ㎛ [BD-300 / 600] 10 ㎛ |
| Display method | Dual display by 6-digit, 11-segment LED |
| Display range | [BD-030 / 065 / 100] ± 99.999 to ± 99 mm (4-step paramete set) [BD-300 / 600] ± 999.99 to ± 999 mm (3-step parameter set) |
| Display cycle | Approx. 100ms |
| Insulation resistance | ≥ 20 MΩ (500 VDC megger) |
| Noise immunity | Square shaped noise by noise simulator (pulse width: 1 ㎲) ± 500 V |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock | 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | Under 85%RH, storage: under 85%RH |
| Protection structure | IP40 (IEC Standards) |
| Material | Case: Polycarbonate, Cover: Polycarbonate, Cable: Polyvinyl chloride |
| Connection method | Connector type |
| Supported sensor head | Sensor head (BD-□) |
| Supported comunication converter | Communication converter (BD-C) |
| Weight | 126 g (≈ 228 g) |
