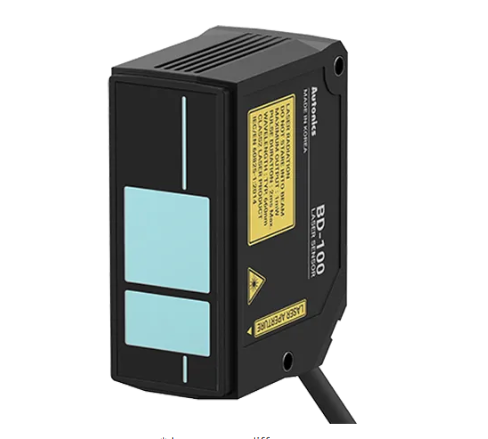

AUTONICS BD-100,
- Spot diameter : Near(80mm): Approx. 480×1870 ㎛
Reference(100mm): Approx. 410×1330 ㎛
Far(120mm): Approx. 330×950 ㎛ - Resolution : 4㎛
- Reference distance : 100mm
- Max. measurement range : 70 to 130mm
- Linearity : 0.15% F.S. (in 80 to 120mm)
Data sheet Print
| Spot diameter | Near(80mm): Approx. 480×1870 ㎛ Reference(100mm): Approx. 410×1330 ㎛ Far(120mm): Approx. 330×950 ㎛ |
|---|---|
| Resolution | 4㎛ |
| Reference distance | 100mm |
| Max. measurement range | 70 to 130mm |
| Linearity | 0.15% F.S. (in 80 to 120mm) |
| Temperature Characteristics | 0.06% F.S./℃ |
| Power voltage | Using power from the amplifier unit. |
| Light source | Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) |
| Light Source_Optical method | Diffuse reflection |
| Light Source_Laser class | Class 2 (IEC/EN), Class II (FDA(CDRH) CFR Part 1002) |
| Laser Pulse duration | Max. 2ms |
| Light Source_Output | Max. 1㎽ |
| Operation indicator | Power indicator: red LED, Laser emission indicator: green LED, NEAR/FAR indicator: green LED |
| Insulation resistance | ≥ 20 MΩ (500 VDC megger) |
| Noise immunity | Square shaped noise by noise simulator (pulse width: 1㎲) ±500V |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours |
| Shock | 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination | Max. Incandescent lamp 10,000 lx |
| Environment_Ambient temperature | -10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) |
| Protection structure | IP67 (IEC Standards, except connector of extension cable) |
| Material | Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride |
| Amplifier unit compatibility | BD Series amplifier unit: 1 |
| Weight | ≈ 68 g (≈ 233 g) |
