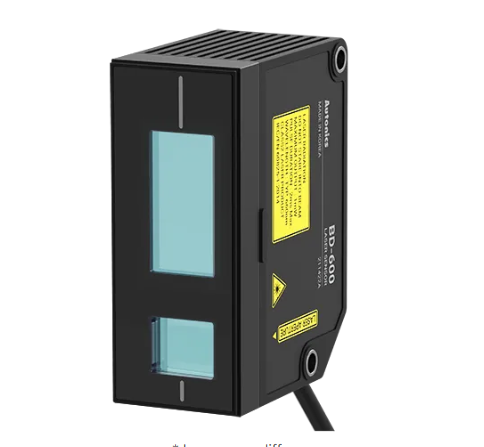

AUTONICS BD-600,
- Spot diameter : Near(250mm): ≈ 1,140×1,175 ㎛
Reference(600mm): ≈ 860×830 ㎛
Far(1,000mm): ≈ 800×775 ㎛ - Resolution : 40 ㎛
- Reference distance : 600mm
- Max. measurement range : 250 ~ 1,000 mm
- Linearity : ± 0.25% of F.S. (250 ~ 600 mm)
± 0.5% of F.S. (600 ~ 1,000 mm)
Data sheet Print
| Spot diameter | Near(250mm): ≈ 1,140×1,175 ㎛ Reference(600mm): ≈ 860×830 ㎛ Far(1,000mm): ≈ 800×775 ㎛ |
|---|---|
| Resolution | 40 ㎛ |
| Reference distance | 600mm |
| Max. measurement range | 250 ~ 1,000 mm |
| Linearity | ± 0.25% of F.S. (250 ~ 600 mm) ± 0.5% of F.S. (600 ~ 1,000 mm) |
| Temperature Characteristics | 0.08% of F.S./℃ |
| Power voltage | Using power from the amplifier unit. |
| Light source | Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) |
| Light Source_Optical method | Diffuse reflection |
| Light Source_Laser class | Class 2 (IEC/EN), Class II (FDA (CDRH) CFR Part 1002) |
| Light Source_Output | ≤ 1 mW |
| Laser Pulse duration | Max. 2ms |
| Operation indicator | Power indicator: red LED, Laser emission indicator: green LED, NEAR/FAR indicator: green LED |
| Insulation resistance | ≥ 20 MΩ (500 VDC megger) |
| Noise immunity | Square shaped noise by noise simulator (pulse width: 1㎲) ±500V |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock | 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination | Max. Incandescent lamp 10,000 lx |
| Environment_Ambient temperature | -10 to 50℃, storage: -15 to 60℃ |
| Environment_Ambient humidity | 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) |
| Protection structure | IP67 (IEC Standards, except connector of extension cable) |
| Material | Front case: AL, Rear case: PC, Cable: PVC, Sensing part: Glass |
| Amplifier unit compatibility | BD Series amplifier unit: 1 |
| Weight | ≈ 153 g (≈ 332 g) |
