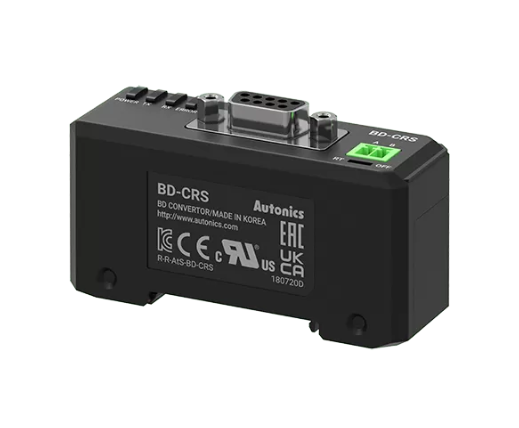

AUTONICS BD-CRS,
- Power voltage : Using power from the amplifier unit.
- Power consumption : Max. 2.3W
- Communication function : RS-232C, RS-485
- Communication speed : 9600, 19200, 38400, 115200bps (default)
- Indication : 4 LED status indicators
Data sheet Print
| Power voltage | Using power from the amplifier unit. |
|---|---|
| Power consumption | Max. 2.3W |
| Communication function | RS-232C, RS-485 |
| Communication speed | 9600, 19200, 38400, 115200bps (default) |
| Indication | 4 LED status indicators |
| Function | • Real-time monitoring • Executes every BD-Series feature and sets parameter by external device (Master) |
| Environment_Ambient temperature | -10 to 50℃, storage: -15 to 60℃ |
| Environment_Ambient humidity | Under 85%RH, storage: under 85%RH |
| Vibration | 1.5mm amplitude at frequency of 10 to 50Hzin each X, Y, Z direction for 2 hours |
| Shock | 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Protection structure | IP40 (IEC Standards) |
| Material | Case: Polycarbonate |
| Accessories | Side connector, Connector for RS485 |
| Sold separately | Communication converter (SCM-38I, SCM-US48I, SCM-WF48) Approval Weight※ |
| Weight | Approx. 91g (approx. 49g) |
