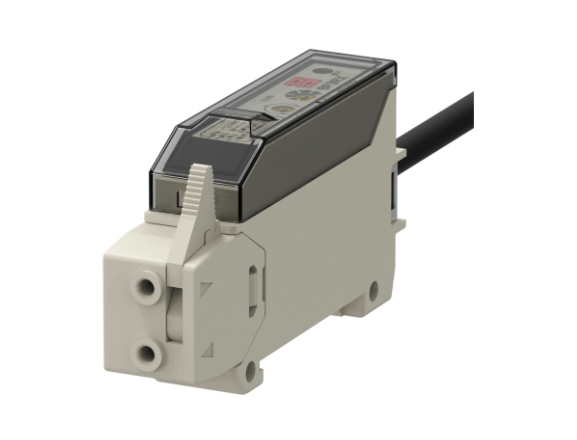

AUTONICS BF3RX,
- Type : Built-in twin volume type
- Light source : Red LED(660nm)
- Response time : Max. 1ms
- Power voltage : 12-24VDC
±10%(ripple P-P: max. 10%) - Operation mode : Light ON/Dark ON(set by control wire)
- Control output : NPN open collector
Data sheet Print
| Type | Built-in twin volume type |
|---|---|
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power voltage | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 40mA |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
| Sensitivity adjustment | Sensitivity adjuster(coarse adjustment, fine adjustment) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Cover: Polycarbonate |
| Cable specification | Ø5mm, 4-wire, 2m (AWG24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) |
| Accessories | Sensitivity adjuster driver, Mounting bracket, Bolts, Nuts |
| Weight | Approx. 90g |
