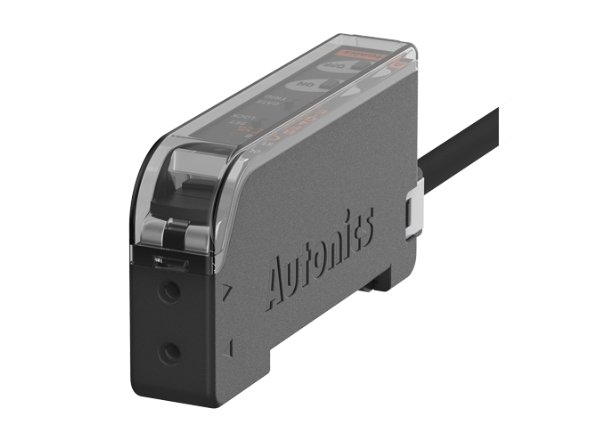

AUTONICS BF4G,
- Type : Standard type
- Light source : Green LED(525nm)
- Response time : Frequency 1: Max. 0.5ms, Frequency 2: Max. 0.7ms
- Power voltage : 12-24VDC
±10%(ripple P-P: max. 10%) - Operation mode : Light ON/Dark ON(set by ON/OFF button)
- Control output : NPN open collector
Data sheet Print
| Type | Standard type |
|---|---|
| Light source | Green LED(525nm) |
| Response time | Frequency 1: Max. 0.5ms, Frequency 2: Max. 0.7ms |
| Power voltage | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 45mA |
| Operation mode | Light ON/Dark ON(set by ON/OFF button) |
| Control output | NPN open collector |
| Timer function | OFF Delay(40ms) |
| Sensitivity adjustment | Manual |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Mutual interference prevention | Built-in differential frequency mode(frequency 1(normal mode): max. 0.5ms, frequency 2: max. 0.7ms) |
| Self-diagnosis output | ON state under unstable sensing(when the target stays for 300ms in unstable level), ON state when control output is short-circuited •Load voltage: Max. 30VDC •Load current: Max. 50mA •Residual voltage – Max. 1V(load current: 50mA), Ma |
| Material | Case: Heat-resistance acrylonitrile butadiene styrene, Cover: Polycarbonate |
| Cable specification | Ø4mm, 4-wire, 2m(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm) |
| Accessories | Fixing bracket, Bolts, Nuts |
| Weight | Approx. 120g(approx. 65g) |
