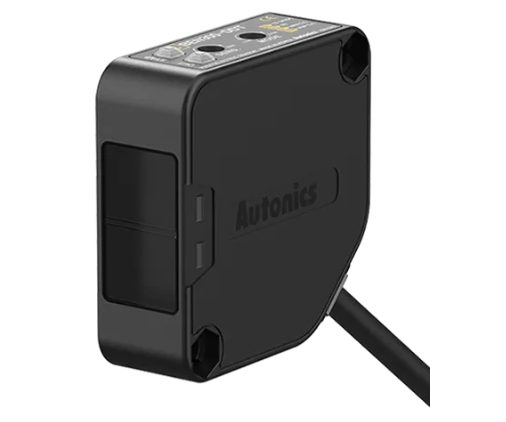

AUTONICS BEN300-DDT,
Data sheet Print
| Sensing type | Diffuse reflective type |
|---|---|
| Sensing distance | 300mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 50mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN, PNP open collector simultaneous output |
| Connection type | Cable type(Ø5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP50 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at sensing distance |
| Material | Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate), Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum, Nut: steel chromium molybden |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 187g |
