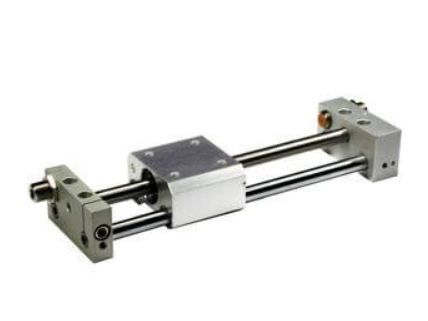

SMC Rodless Cylinder NC(D)Y2S Magnetically Coupled Inch Stroke Slide Bearing,
The NCY2S Rodless Cylinder – Magnetically Coupled uses industrial strength magnets located in the piston,
and external carriage to form a single unit that will travel when actuated with air pressure.
It is available in a standard or heavy duty magnetic holding force. It is a one piece unit integrated with slide bearings which provides lateral stability protecting it from side load impacts.
-
- Bore sizes (nominal): 1/4″, 3’8″, 5/8″, 3/4″, 1″, 1-1/4″, 1-1/2″
- Stroke length: 2″, 4″, 6″ 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 28″, 32″, 36″, 40″, 60″
- Minimum operating pressure: 26 psi
- Speed: 2 ~ 20 inch/sec.
- Auto switch capable
