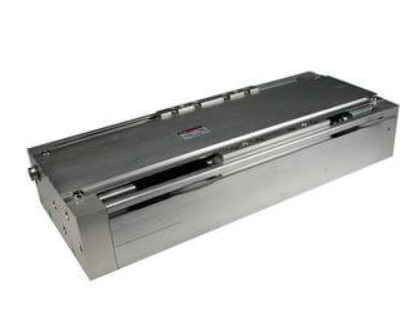

SMC Rodless Cylinder CY1H Magnetically Coupled High Precision Guide,
The CY1H high precision Rodless Cylinder – Magnetically Coupled uses industrial strength magnets located in the piston,
and external carriage to form a single unit that will travel when actuated with air pressure.
It is installed with either a single axis or dual axis internal linear guides to support larger load and moment as well as greater precision than the CY1S or CY1L Series.
- Bore sizes: 10, 15, 20, 25, 32 mm
- Stroke lengths: 100, 200, 300, 400, 500, 600, 800, 1000, 1200, 1500 mm
- Minimum operating pressure: 0.2 MPa (29 psi)
- Speed: 70 ~ 500 mm/sec.
- Available with external shock absorbers
