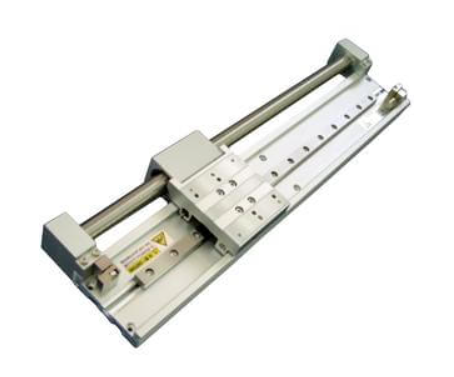

SMC Rodless Cylinder CY1F Magnetically Coupled Low Profile Guide,
The CY1F low profile Rodless Cylinder – Magnetically Coupled uses industrial strength magnets located in the piston,
and external carriage to form a single unit that will travel when actuated with air pressure.
It is installed with a single axis internal linear guide to reduce its profile as much as 29% and up to 50% weight reduction compared to the CY1H Series.
- Bore sizes: 10, 15, 25 mm
- Stroke lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600 mm
- Maximum stroke lengths: 500 mm (10 bore), 750 mm (15 bore), 1200 mm (25 bore)
- Minimum operating pressure: 0.2 MPa (29 psi)
- Speed: 50 ~ 500 mm/sec.
