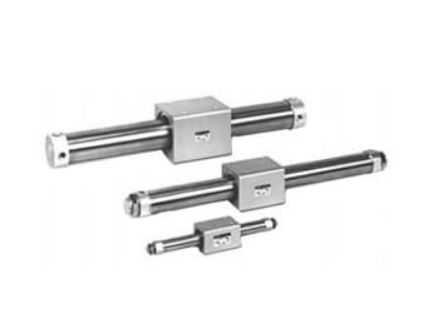

SMC Rodless Cylinder 12-CY3B-Z Clean Room Magnetically Coupled mm Stroke,
The 12-CY3B-Z Rodless Cylinder – Magnetically Coupled uses industrial strength magnets located in the piston,
and external carriage to form a single unit that will travel when actuated with air pressure.
It uses fluorine grease making it inert to temperature fluctuations,
chemical exposure and various gases which will not cause cracking or swelling in synthetic rubbers,
or elastomers qualifying it for ISO Class 5 (Class 100) clean room rating. Please note the 12-CY3B-Z must be used with an external guide to support the load.
- Bore sizes: 6, 10, 15, 20, 25, 32, 40, 50, 63
- Stroke lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1500, 3000, 5000 mm
- Minimum operating pressure: 0.12 ~0.16 MPa (17 ~ 23 psi)
- Speed: 50 ~ 500 mm/sec.
- Fluorine grease
- ISO Class 5 (Class 100)
