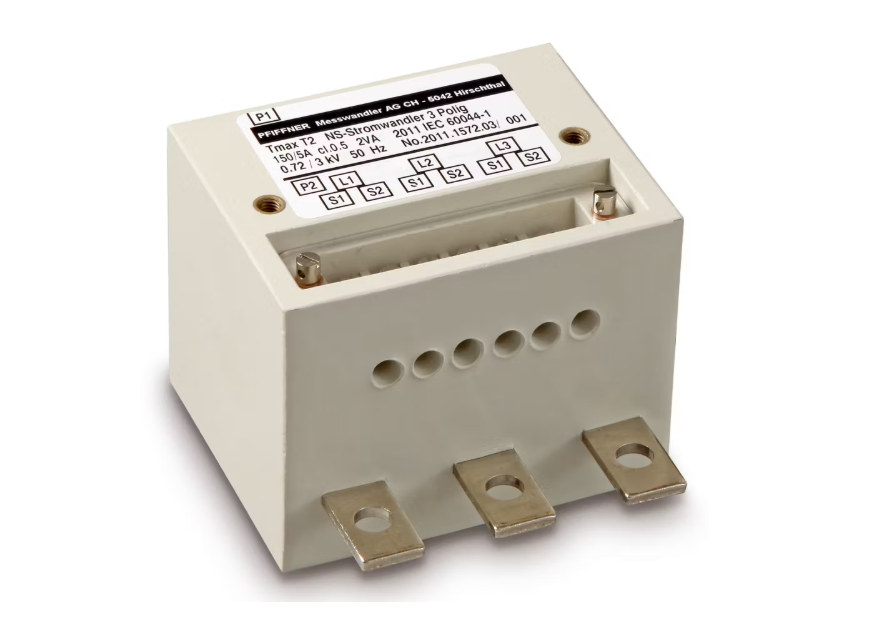

Current transformer TMAX,
The TMAX has been designed for TMAX circuit breaker.
- Current transformer for compact circuit-breakers
- Three-phase design
- Moulded in Polyurethane
- Minimum space requirement
- Easy installation
- Standard: IEC/EN 61869-2
- Official calibration possible
Technical data
| Highest operating voltage | 0.72 kV |
| Test voltage | 3.0 kV |
| Frequency | 50/60 Hz |
| Continuous thermal current T2/T3/T4 | 120 % Ipr |
| Continuous thermal current T5/T6 | 105 % lpr |
| Short-time thermal current | 60 Ipr 1s |
