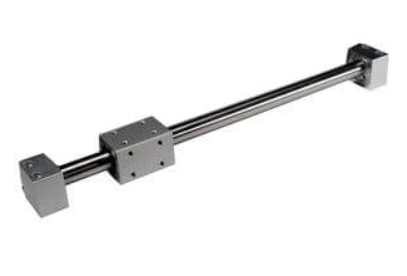

SMC Rodless Cylinder CY3R-N Magnetically Coupled Direct Mount w/o Switch Rail,
The CY3R Cylinder – Magnetically Coupled uses industrial strength magnets located in the piston,
and external carriage to form a single unit that will travel when actuated with air pressure.
The CY3R series has resin based lube retainers installed on the dust seal to more evenly distrubute lubricant,
for a reduction in minimum operating pressure. 70% longer wear rings,
will distribute a side load over a larger contact area for improved bearing performance.
Please note the CY3R-N must be used with an external guide to support the load.
- Bore sizes: 6, 10, 15, 20, 25, 32, 40, 50, 63 mm
- Stoke lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1500, 2000 mm
- Minimum operating pressure: 0.12 ~ 0.16 MPa (17 ~ 23 psi)
- Direct mount type
- Speed: 50 ~ 500 mm/sec.
- Auto switch capable
- Option include: High Speed, 1500 mm/sec. (X160), Hard Chrome Plating (X322)
