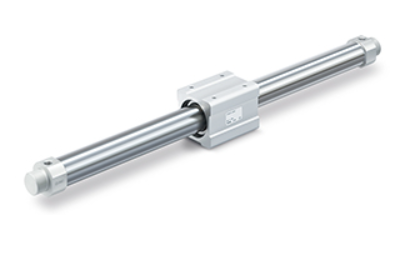

SMC Rodless Cylinder CY3B-Z Magnetically Coupled,
With no external leakage, the CY series can be use in many diverse environments.
Magnetically coupled cylinders have a wide range of applications, and save mounting space.
Loads and moments are possible through the use of integrated guides.
A variety of guides can be use to achieve the necessary accuracy or allowable moment needed for your application.
CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm.
The 5 different model variations offer widest application choice. Auto switches are integrate as standard.
- Bore sizes: 6, 10, 15, 20, 25, 32, 40, 50, 63
- Stroke lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, up to 5000mm manufacturable stroke
- Minimum operating pressure: 0.12~0.16 MPa (17~23psi)
- Speed: 50~500 mm/sec
