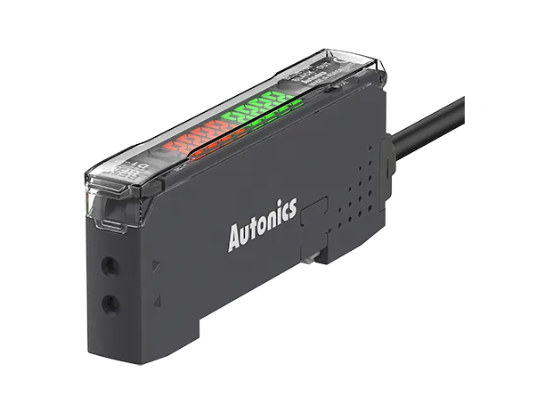

AUTONICS BF5B-D1-N,
Data sheet Print
| Type | Dual display |
|---|---|
| Display method | 4-digit 7-segment LED |
| Light source | Blue LED(470nm) |
| Response time | 50㎲, 150㎲, 500㎲, 4ms, 10ms |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 50mA |
| Operation mode | Light ON/Dark ON(set by parameter) |
| Control output | NPN open collector |
| Timer function | OFF, OFF Delay, ON Delay, One-shot(1 to 5000ms) |
| Sensitivity adjustment | Manual Teaching(auto-tuning, 1-point, 2-point, positioning) ※ In multiple connection, batch teaching available |
| Communication | I2C(max. 8 units) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 70℃ |
| Protection structure | IP40 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Mutual interference prevention | Max. 8 unit sets(automatically set regardless of response time) |
| Initializing | Initializing as factory mode |
| Energy saving | Normal/Energy saving 1/Energy saving 2 |
| Material | Case: Polybutylene terephthalate, Cover: Polycarbonate |
| Accessories | Connector type wire(Ø4mm, 3-wire, 2m)(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm), Side connector |
| Weight | Approx. 138g(approx. 20g) |
