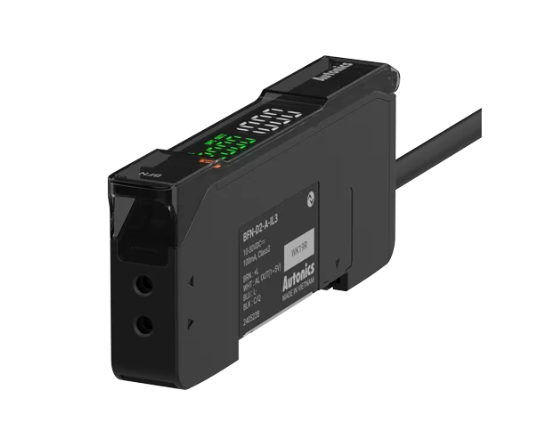

AUTONICS BFN-D2-A-IL3,
Data sheet Print
| Display resolution | 9999 (SV (Green) / PV (White): 4-digit, 7-segment) |
|---|---|
| Communication | BFNC Series compatible, IO-Link |
| No. of outputs | 2-Output |
| Output | Digital (OUT 1) + Analog (OUT 2) |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Teaching mode (1-point, 2-point, Auto, Area, Rising / Falling edge) / Manual |
| Response mode (Response time) | MFST: Mega fast (25 μs) UFST: Ultra fast (50 μs) FST: Fast (150 μs) STD: Standard (500 μs) LONG: Long (4 ms) ULOG: Ultra long (10 ms) MLOG: Mega long (20 ms) |
| Operation mode | Light ON / Dark ON |
| Timer setting | ON Delay, OFF Delay, One Shot, ON/OFF Delay, One Shot ON Delay (parameter setting, time setting range: 1 to 9,999 msec) |
| Unit weight (packaged weight) | ≈ 74 g (≈ 139 g) |
| Power voltage | 10 – 30 VDC (ripple P-P: ≤ 10 %) |
| Digital output | Push-pull, NPN, PNP output (parameter setting) |
| Analog output | [Advanced: digital + analog output models] only |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection |
| Insulation resistance | ≥ 20 MΩ (500 VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours |
| Shock | 500m/s²(approx. 50G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination | Sunlight: ≤ 30,000 lx, incandescent lamp: ≤ 20,000 lx |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 70℃ |
| Environment_Ambient humidity | 35 to 85%RH, Storage: 35 to 85%RH (no freezing or condensation) |
| Protection structure | IP50 (IEC standard) |
| Connection | Cable type |
| Material | Case, cover: PC |
