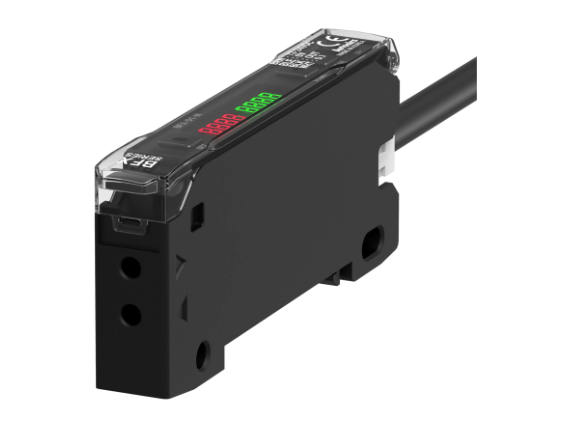

AUTONICS BFX-D1-P,
Data sheet Print
| Type | Dual display |
|---|---|
| Display method | 4-digit 7-segment LCD |
| Light source | Red LED(660nm) |
| Response time | 50㎲, 150㎲, 500㎲, 4ms, 10ms |
| Power voltage | 12-24VDC  |
| Current consumption | Max. 50mA |
| Operation mode | Light ON/Dark ON(set by parameter) |
| Control output | PNP open collector |
| Timer function | OFF, OFF Delay, ON Delay, One-shot(1 to 5000ms) |
| Sensitivity adjustment | Manual Teaching(auto-tuning, 1-point, 2-point, positioning) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 50℃ |
| Protection structure | IP40 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: polyketon, cover: polycarbonates |
| Accessories | Connector type wire (Ø4mm, 4-wire, 2m / AWG22, core diameter: 0.08mm, number of cores: 60, insulator diameter: Ø1.25mm) |
| Weight | Approx. 115g(approx. 16g) |
