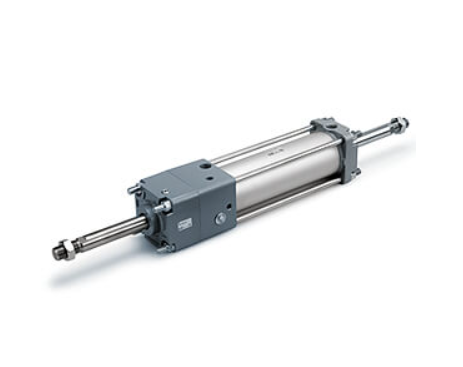

SMC C(D)NA2W Cylinder w/Lock Double Acting Double Rod,
The CNA2 series cylinder with lock is suitable for mid-stroke stops, emergency stops, and drop prevention.
An equal holding force in extending and retracting directions make it possible to lock at either end of the stroke.
High reliability and stable holding force are maintaine by using a substantially lengthene brake shoe with superior wear resistance.
The locking mechanism is isolate from lock release air, so lock function is not diminishe by excessive dirt or drain in compressed air.
- Double acting, double rod cylinder w/lock
- Mounting: basic, axial foot, rod flange, center trunnion
- Bore sizes (mm): 40, 50, 63, 80, 100
- Strokes up to 700mm (depending on bore size)
- Auto switch capable
