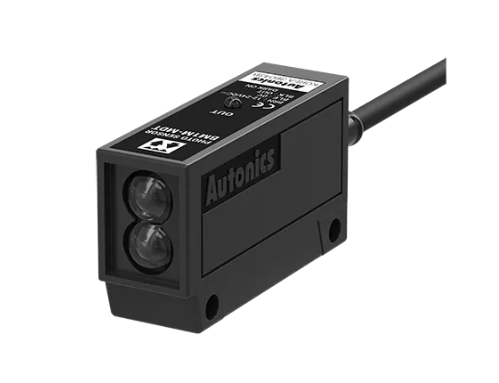

AUTONICS BM1M-MDT,
Data sheet Print
| Sensing type | Retroreflective type |
|---|---|
| Sensing distance | 1m(MS-2) |
| Sensing target | Opaque material of min. Ø60mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 3ms |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 40mA |
| Sensitivity adjustment | Fixed |
| Operation mode | Dark ON |
| Control output | NPN open collector |
| Connection type | Cable type(Ø4, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60℃, storage: -25 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Acryl, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Unit weight (packaged weight) | ≈ 105 g (≈ 188 g) |
