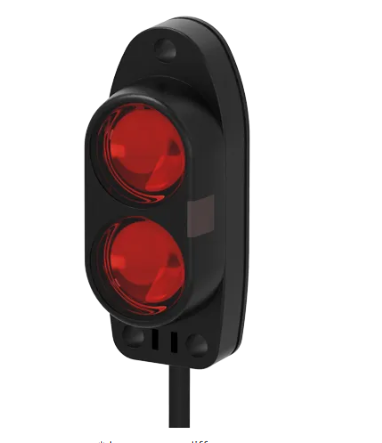

AUTONICS BA2M-DDT,
Data sheet Print
| Sensing type | Diffuse reflective type |
|---|---|
| Sensing distance | 2m |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power voltage | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 15mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON |
| Control output | NPN open collector |
| Connection type | Cable type(Ø3, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55℃, storage: -25 to 70℃ |
| Protection structure | IP64 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at sensing distance |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Indicator: Polycarbonate, Adjuster: IXEF |
| Accessories | Adjuster driver |
| Weight | Approx. 50g |
