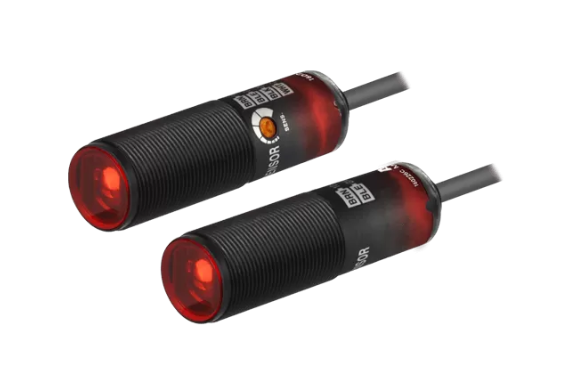

AUTONICS BRQP20M-TDTA,
Data sheet Print
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 20m |
| Sensing target | Opaque material of min. Ø7mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power voltage | 10-30VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
| Connection type | Cable type(Ø4, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60℃, storage: -30 to 70℃ |
| Protection structure | IP67(IEC standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polycarbonate Lens, Lens cover: Polymethyl Methacrylate Acrylic |
| Weight | Approx. 160g(approx. 110g) |
