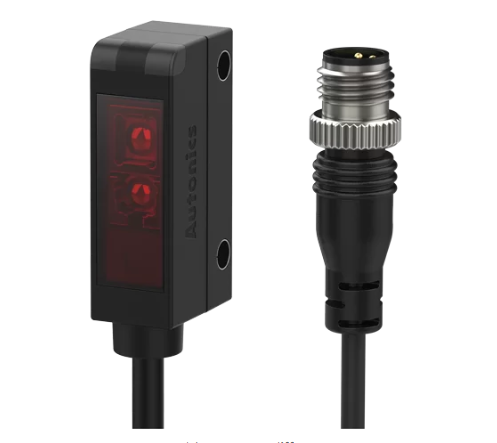

AUTONICS BTS30-GDTD-W-P,
Data sheet Print
| Sensing type | BGS reflective type |
|---|---|
| Sensing distance | 1 to 30 mm |
| Sensing target | Opaque, Translucent material |
| Min. sensing target | ≥ Ø 0.1 mm |
| Hysteresis(distance) | ≤ 5% of sensing distance |
| Black/white error | Max. 10% of sensing distance |
| Response time | ≤ 0.7 ms |
| Light source | Red LED(650nm) |
| Mutual interference prevention | ≤ 4 units |
| Operation mode | Dark ON |
| Indicator | Operation indicator (yellow), stability indicator (green) |
| Unit weight (packaged weight) | ≈ 25 g (≈ 45 g) |
| Power voltage | 10 – 30 VDC (ripple P-P: ≤ 10 %) |
| Current consumption | Max. 20mA |
| Control output | PNP open collector |
| Protection circuit | Reverse power polarity, reverse output polarity, output short-circuit over-current protection |
| Insulation resistance | ≥ 20 MΩ (500 VDC megger) |
| Noise immunity | The square wave noise (pulse width: 1㎲), by the noise simulator ±240VDC |
| Dielectric strength | Between the charging part, and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm double amplitude or 300 m/s², at frequency of 10 to 2,000 Hz in each X, Y, Z direction for 0.5 hours |
| Shock | 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination | Sunlight: ≤ 10,000 lx, incandescent lamp: ≤ 5,000 lx |
| Environment_Ambient temperature | -25 to 55 ℃, Storage: -30 to 70 ℃ (rated at no freezing or condensation) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Connection | Cable connector type |
| Connector type | M8 4-pin plug |
| Material | Case: PC / sensing part: PMMA / bracket, bolt: stainless steel 304 |
