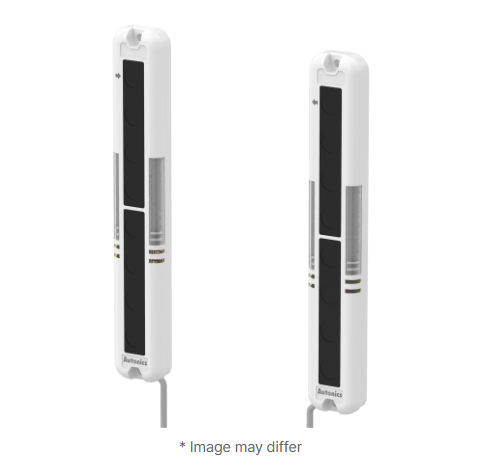

AUTONICS BWP20-16P,
- Sensing type : Through-beam type(direct beam)
- Sensing distance : 0.1 to 5m
- Light source : Infrared LED(850nm modulated)
- Optical axis pitch : 20mm
- Number of optical axes : 16
- Power voltage : 12-24VDC
±10%(ripple P-P: max. 10%) - Control output : PNP open collector
- Operation mode : Light ON/Dark ON(set by switch)
Data sheet Print
| Sensing type | Through-beam type(direct beam) |
|---|---|
| Sensing distance | 0.1 to 5m |
| Light source | Infrared LED(850nm modulated) |
| Optical axis pitch | 20mm |
| Number of optical axes | 16 |
| Sensing height/Total length | 300/350mm |
| Power voltage | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Control output | PNP open collector |
| Operation mode | Light ON/Dark ON(set by switch) |
| Environment_Ambient illumination | Sunlight: Max. 10,000lx(receiver illumination) |
| Environment_Ambient temperature | -10 to 55℃, storage: -20 to 60℃ |
| Connection type | Cable type(Ø3.5, 3m) |
| Protection structure | IP40 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Min. sensing target | Opaque material of min. Ø30mm |
| Response time | Max. 6ms(frequency B selection is max. 7ms) |
| Material | Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate |
| Cable specification | Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m) (AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) |
| Weight | Approx. 620g(approx. 360g) |
