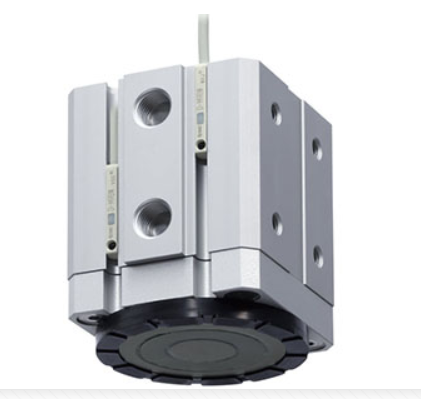

SMC MHM Magnet Gripper,
Series MHM is a magnetic gripper that can be used in place of vacuum cups or grippers when holding a metallic workpiece.
Auto switches can be mounted on 2 surfaces. Expanded mounting options include body tapped, lateral, and central.
- Steel plates can be transferred without a vacuum
- Supports workpieces with holes, uneven, and complex surfaces where a vacuum pad cannot be used
- Holds workpieces even when air is shut off
- High holding force up to 1000 N (ø50, workpiece thickness 6mm)
- Adjustable holding force option possible
