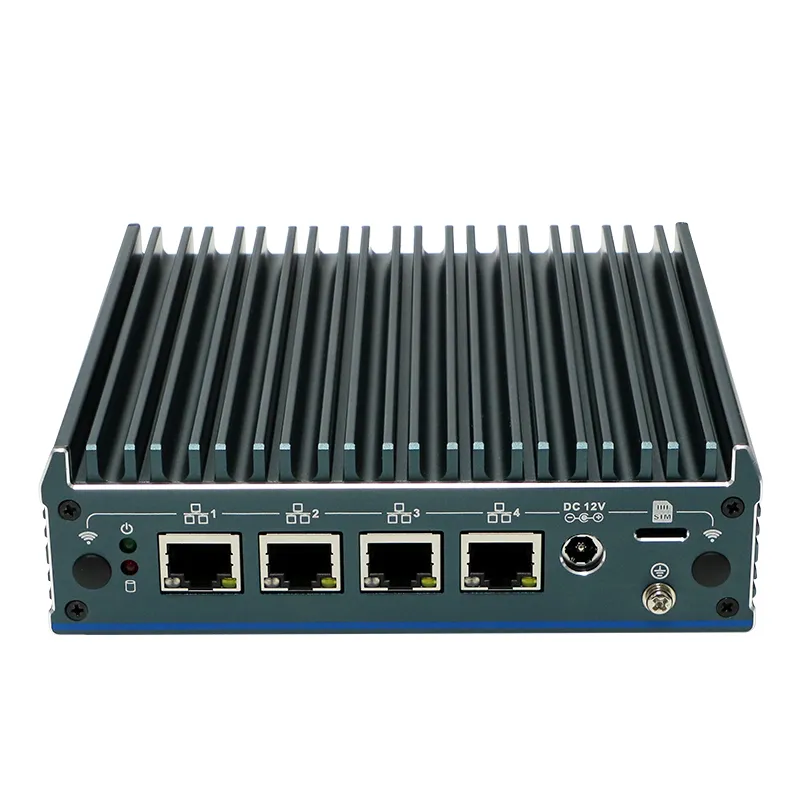

N100 Mini PC Quad Core Micro Firewall Appliance,
with 4*Intel i225-V 2.5G LAN,
and DDR4 3200MHz MAX 16GB RAM.
| System Parameter | |
| Model | N1241 |
| Processor | Intel Processor N100 (Quad core quad threading, and max turbo 3.4 GHz) |
| CPU Architecture | Alder Lake-N |
| Chipset | Intel(R)UHD Graphics |
| Memory | Support 1*DDR4 3200MHz,MAX 16GB RAM Slot |
| BIOS | AMI UEFI BIOS |
| Display Port | 1*HD，1*DP |
| Storage | 1*M.2-2280SSlot，1*2.5’’ HDD |
| Expansion | 1*M.2-2280 M-key Slot（Support SATA Protocol） |
| 1*M.2-2230 E-key slot (support WIFI, Bluetooth) | |
| 1*M.2 3052 B-key slot (USB3.0 signal， support 4G/5G ), outside SIM slot |
|
| Front I/O | 1*Power switch,1*DP, 1*RJ45 COM(support Console function), 3*USB2.0, 1*USB3.1, 1*HDMI, 1*reset button |
| Rear I/O | 4*RJ45 LAN, 1*DC IN, 1*SIM card slot |
| Network | 4*Intel i225-V 2.5G LAN |
| Input Voltage | DC 12V； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Power-on, timed power-on, network wake-up, with PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Application | Firewall, VPN, Network Server, and Network Security, Router and etc |
| Structure Parameter | |
| Color | Metal gray |
| Material | High-quality all aluminum， surface anodic oxidation |
| Dimension | 144 * 136.7 * 42 mm |
| Weight | 0.79 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃（Commercial HDD）， -20℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
