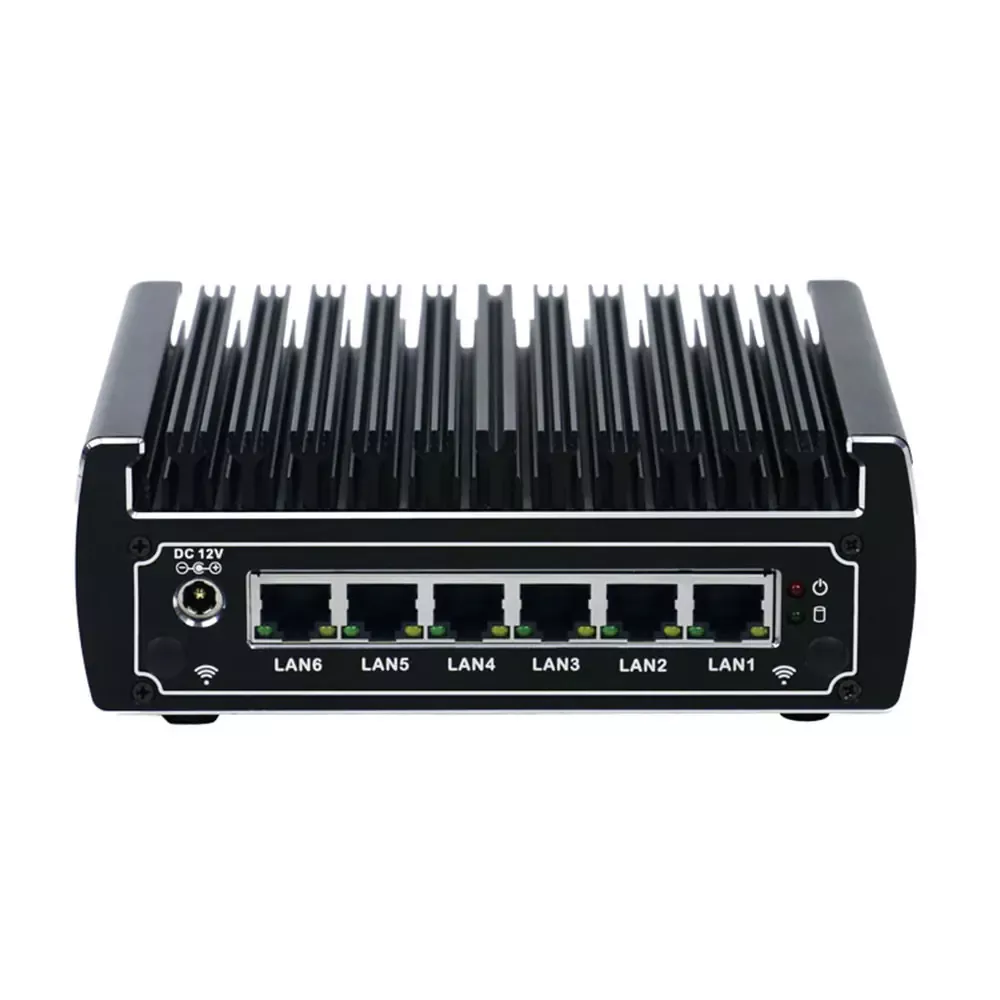

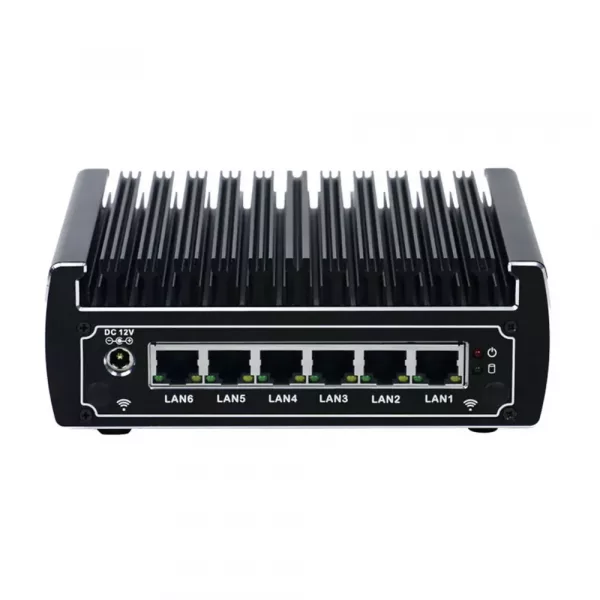

6 Port Fanlss Mini PC Firewall VPN High-quality all aluminum Multi-Lan Mini Pc 8th Intel Core i3 8130U Processor
| System Parameter | |
| Model | N13L6 Muti-lan Mini PC |
| Processor | Intel Core i3 8130U (dual core quad threads， Basic 2.2 GHz, Turbo 3.4 GHz) |
| CPU Architecture | KabyLake-U |
| RAM | Support 2*DDR4 2400 MHz SODIMM RAM Slot ，Max. Support 32GB |
| Display Chip | Intel HD Graphics 620 |
| Display Port | 1*HDMI（NO Sound Output） |
| Front I/O | 4*USB3.0，1*Power Switch， 1*RJ45 COM（Support Console function）,1*HDMI |
| Rear I/O | 6*RJ45 LAN, 1*DC Input |
| Expansion Slot | Support 1*MINI PCIE Slot（WIFI/BT Optional）, Support 1*MINI PCIE Slot（Support MSATA） |
| Network | 6*Intel i210-AT/i211-AT 10/100/1000M LAN |
| Storage | 1*MSATA Slot，1*2.5”HDD |
| Input Voltage | Support DC 12V Input |
| Other Function | Auto power on when there is electricity、Timing boot、 and Wake on LAN、PXE boot、 and Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Firewall，Network Server，Network Security，Router etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | High-quality pure aluminum |
| Dimension | 155 * 126.5 * 52.5mm |
| Weight | 1.6kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
