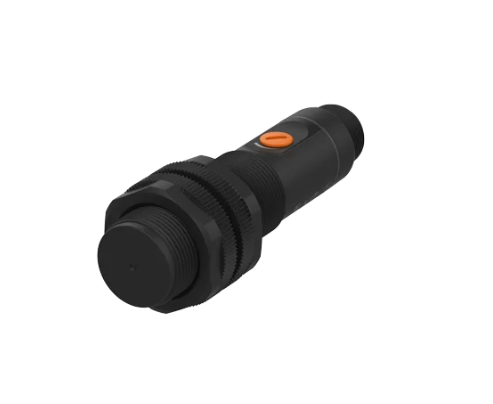

AUTONICS CPCM18-15AO,
Data sheet Print
| Mounting type | Non-flush |
|---|---|
| Sensing side diameter | Ø18mm |
| Sensing distance | 15mm |
| Setting distance | 0 to 10.5 mm |
| Hysteresis(distance) | Max. 20% of sensing distance |
| Standard sensing target: iron | 45×45×1mm(iron) |
| Response frequency | 25 Hz |
| Affection by temperature | ≤ ± 20 % for sensing distance at ambient temperature 20 ℃ |
| Indicator | Operation indicator (orange), stable indicator (green) |
| Unit weight (packaged weight) | ≈ 72 g (≈ 88 g) |
| Power voltage | 110 -220 VAC~ 50 / 60 Hz, operating voltage: 100 – 240 VAC~ |
| Leakage current | ≤ 3mA |
| Control output | ≤ 5 to 100 mA |
| Residual voltage | ≤ 20 VAC~ |
| Protection circuit | Surge protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,500 VAC~ 50 / 60Hz for 1 min |
| Vibration | 1.5 mm double amplitude, at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours |
| Shock | 500m/s²(approx. 50G) in each X, Y, Z direction for 3 times |
| Ambient temperature | -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation) |
| Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure | IP67(IEC standard) |
| Connection | Connector type |
| Connector type | M12 plug connector |
| Material | Case / Nut: PBT (DIA. of sensing side Ø 18 mm nut: PA6), Standard type cable (black): polyvinyl chloride (PVC), Oil resistant cable type cable (gray): polyvinyl chloride (oil resistant PVC) |
