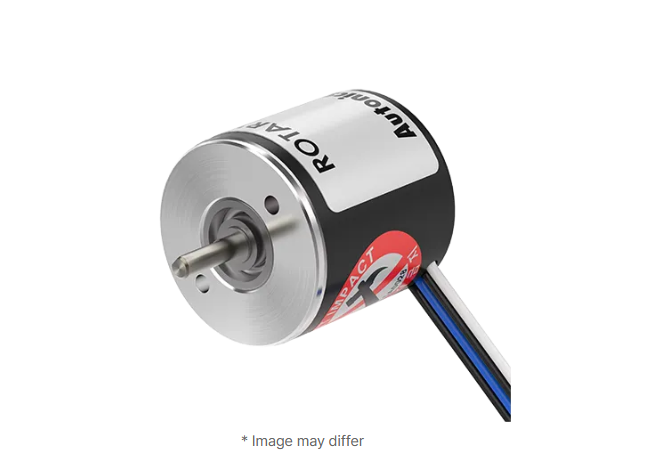

AUTONICS E18S2.5-200-1-A-5-S,
Data sheet Print
| Shaft outer diameter | Ø2.5mm |
|---|---|
| Max. response frequency | 25kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 10gf.cm(max. 0.00098N.m) |
| Resolution | 200P/R |
| Output phase | A |
| Control output | No Amp. |
| Power voltage | 5VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -20 to 80℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Weight | Approx. 34.2g(approx. 12g) |
