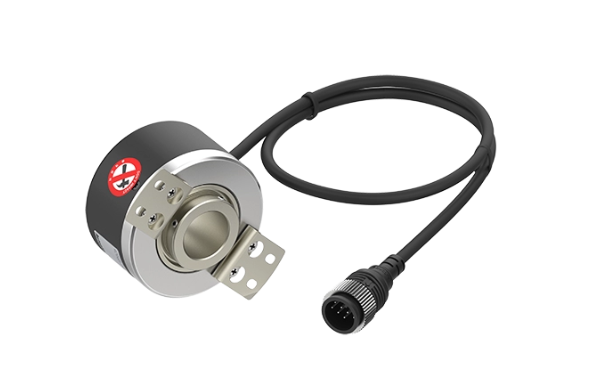

AUTONICS E60H20-1024-3-T-24-C,
Data sheet Print
| Shaft inner diameter | Ø20mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 150gf.cm(max. 0.0147N.m) |
| Resolution | 1024P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power voltage | 12-24VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket: 2 |
| Weight | Approx. 391g(approx. 330g) |
