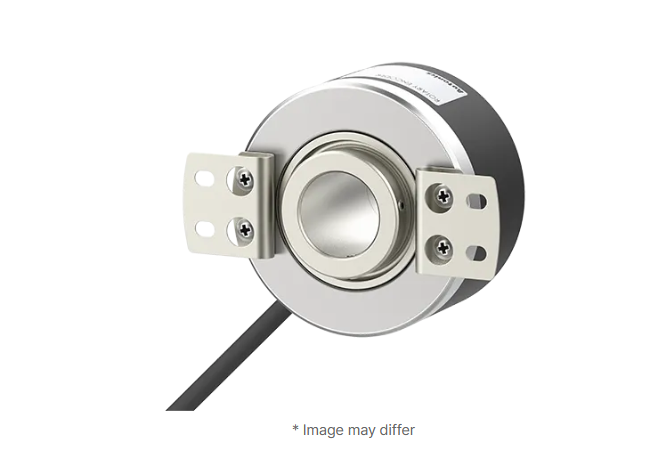

AUTONICS E60H20-2048-10-A-5-S,
Data sheet Print
| Shaft inner diameter | Ø20mm |
|---|---|
| Max. response frequency | 200kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 200gf·cm (0.02N·m) |
| Resolution | 2048P/R |
| Output phase | A,  , B,  , Z,  , C,  , D,  |
| Control output | Analog sine wave OP Amp output |
| Power voltage | 5VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Radial cable type |
| Protection structure | IP40 |
| Environment_Ambient temperature | -20 to 100℃, storage: -25 to 100℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket: 2 |
| Weight | Approx. 750g (approx. 720g) |
