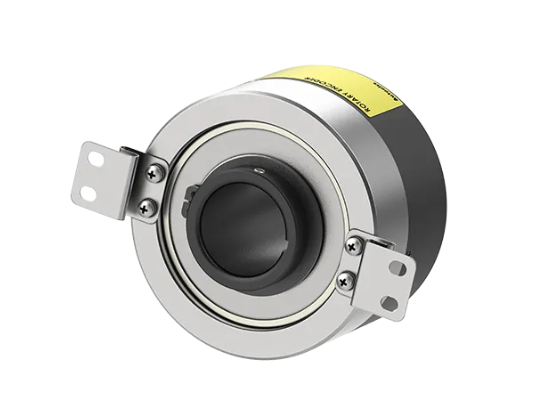

AUTONICS E88H30-1024-2-15,
Data sheet Print
| Shaft outer diameter | Ø30mm |
|---|---|
| Max. response frequency | 150kHz |
| Max. allowable revolution | 3600rpm |
| Starting torque | Max. 600gf.cm(max. 0.06N.m) |
| Resolution | 1024P/R |
| Output phase | A, B |
| Control output | Complemental |
| Power voltage | 15VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Spring bracket: 2 |
| Weight | Approx. 1.49kg(approx. 1.45kg) |
