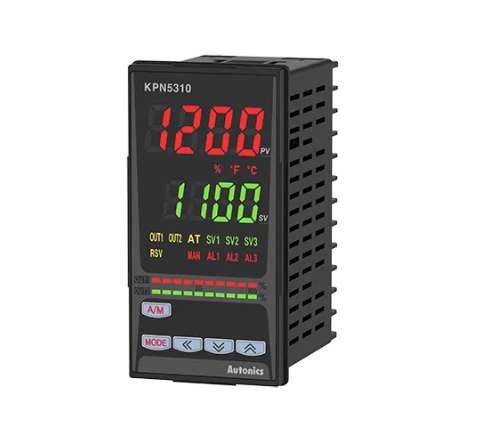

AUTONICS KPN5313-000,
- Power voltage : 100-240VAC~ 50/60Hz
- Input type_RTD : JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel120Ω (6 types)
- Input type_TC : K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types)
- Input type_Analog : ㆍVoltage: 0-100mV, 0-5 V, 1-5 V, 0-10 V (4 types) ㆍCurrent: 0-20mA, 4-20mA (2 types)
- Control method : ON/OFF, P, PI, PD, PID
- Protection structure : IP65(front panel)
- Control output : OUT1: Selectable Current output, SSR drive output
OUT2: Relay output - Environment_Ambient temperature : -10 to 50℃, storage: -20 to 60℃
