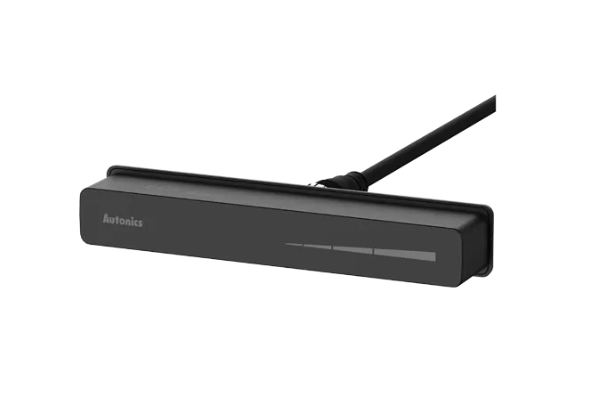

AUTONICS LPD-103-CM12,
Data sheet Print
| Detection range | 103 mm |
|---|---|
| Detection object distance | 0.5 ~ 3.0 mm |
| Function | Positioning |
| Detection type | Inductive |
| Linearity | ± 400µm |
| Response time | ≤ 30 ms |
| Power voltage | 15 – 30 VDC , Rated voltage: 24 VDC |
| Output specification | 0-10 VDC DC4-20mA |
| Load resistance | Voltage: ≥ 2,000 Ω, Current: ≤ 500 Ω |
| Current consumption | ≤ 30 mA |
| Insulation resistance | ≥ 100 MΩ (500 VDC megger) |
| Dielectric strength | Between the charging part and the case: 500 VAC~ 50 / 60 Hz for 1 min |
| Vibration | 1.0 mm double amplitude at frequency 10 to 55 Hz in each X, Y, Z direction for 30 min. |
| Shock | Half sinus, 30 g, 11 ms (EN 60068-2-27, Shock) |
| Protection circuit | Output short over current protection circuit, reverse polarity protection circuit |
| Ambient temperature | -25 to 85 ℃, storage: -25 to 85 ℃ (no freezing or condensation) |
| Ambient humidity | 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) |
| Protection structure | IP67(IEC standard) |
| Standard detection object material | Steel for general structure (SS275, SM45C, etc.). |
| Material | Housing, sensing part: PBT |
| Connection | Connector type |
| Connector type | M12 4-pin plug |
| Unit weight (packaged weight) | ≈53.5 g (≈79.0 g) |
