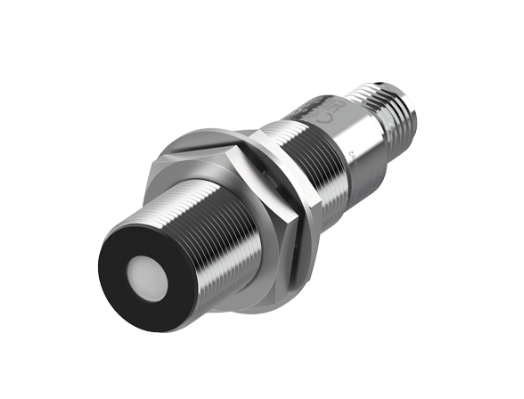

AUTONICS UTRCM18-350,
- Sensing distance : 30 to 350 mm
- Blind zone : 0 to 27 mm
- Foreground suppression : 30 to 90 mm
- Max. setting zone : 350 mm
- Transducer frequency : 305 kHz
Data sheet Print
| Sensing distance | 30 to 350 mm |
|---|---|
| Blind zone | 0 to 27 mm |
| Foreground suppression | 30 to 90 mm |
| Max. setting zone | 350 mm |
| Transducer frequency | 305 kHz |
| Switching frequency | ≥ 25 Hz |
| Response time | ≤ 32 ms |
| Hysteresis(distance) | 3mm |
| Standard sensing target | 200 × 200 mm |
| Resolution | ≥ 0.069 mm |
| Unit weight (packaged weight) | ≈ 30 g (≈ 85 g ) |
| Power voltage | 12 – 30 VDC (ripple P-P: ≤ 10 %) |
| Current consumption | ≤ 40 mA (no load) |
| Digital output | Push-pull |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min |
| Vibration | 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times |
| Ambient temperature | -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) |
| Protection structure | IP66, IP67 (IEC standard), IP69K (DIN standard), IP68 |
| Connection | Connector models |
| Connector type | M12 5-pin plug connector |
| Material | Case: mount – SUS316L, body – PC, transducer: polyurethane foam, epoxy resin with glass |
