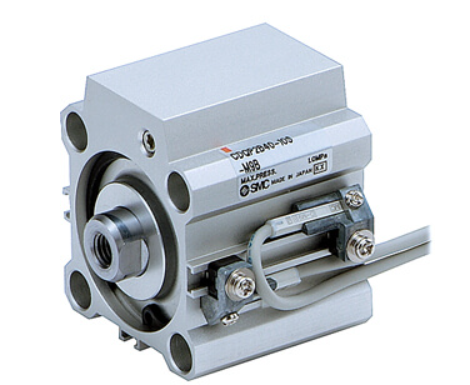

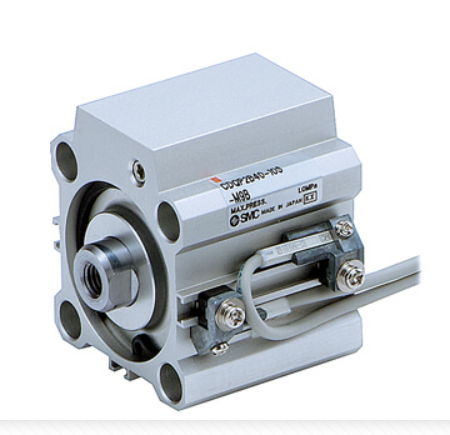

SMC C(D)QP2B Compact Cylinder Double Acting Single Rod Axial Piping,
Axial piping version of the standard double acting, single rod version of the CQ2 compact cylinder include both ports on one side of the actuator.
The CQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.
- Compact, double acting, single rod, axial piping
- Bore size (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke (mm): 5 through 100
- Port thread types: Rc, NPT, G
- Auto switch capable
