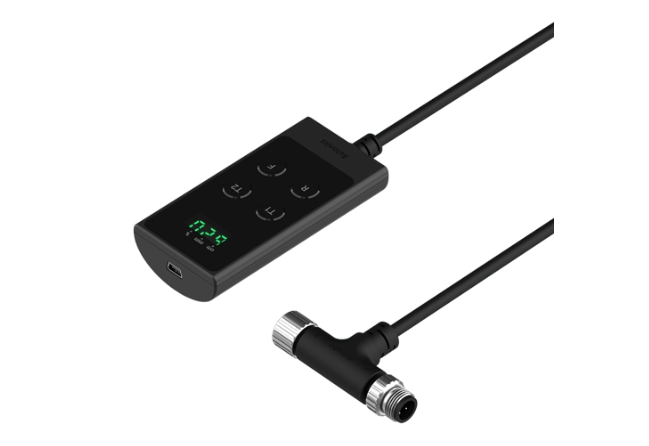

AUTONICS UT-P,
- Power voltage : 12 – 30 VDC
(ripple P-P: ≤ 10 %) - Current consumption : ≤ 25 mA
- Protection circuit : Surge protection circuit, output short over current protection circuit, reverse polarity protection
- Insulation resistance : ≥ 50 MΩ (500 VDC megger)
- Dielectric strength : Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
Data sheet Print
| Power voltage | 12 – 30 VDC (ripple P-P: ≤ 10 %) |
|---|---|
| Current consumption | ≤ 25 mA |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | 5 to 60 ℃, storage: -40 to 85 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 0 to 50 %RH, storage: 0 to 50 %RH (no freezing or condensation) |
| Protection structure | IP20(IEC standard) |
| Connection | Cable connector type |
