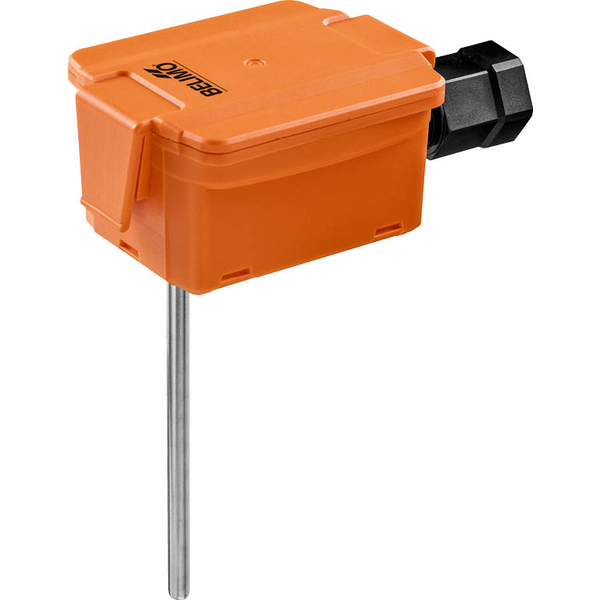

Belimo 01DT-5AL Duct/Immersion sensor Temperature passive, Pt100, Probe Length 4″ [100 mm], Probe diameter 0.24″ [6 mm] Parts included: mounting clip, screws, adhesive foil, 1/2″ NPT conduit adapter
| 01DT-5AH | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt100, Probe length 2″ [50 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5AL | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt100, Probe length 4″ [100 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5AN | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt100, Probe length 6″ [150 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5AP | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt100, Probe length 8″ [200 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5AR | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt100, Probe length 12″ [300 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5AT | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt100, Probe length 18″ [450 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5BH | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt1000, Probe length 2″ [50 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5BL | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt1000, Probe length 4″ [100 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5BN | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt1000, Probe length 6″ [150 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5BP | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt1000, Probe length 8″ [200 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5BR | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt1000, Probe length 12″ [300 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5BT | Sensor | Air | Duct/Immersion Temperature Sensor passive, Pt1000, Probe length 18″ [450 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5EH | Sensor | Air | Duct/Immersion Temperature Sensor passive, Ni1000 (JCI), Probe length 2″ [50 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5EL | Sensor | Air | Duct/Immersion Temperature Sensor passive, Ni1000 (JCI), Probe length 4″ [100 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5EN | Sensor | Air | Duct/Immersion Temperature Sensor passive, Ni1000 (JCI), Probe length 6″ [150 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5EP | Sensor | Air | Duct/Immersion Temperature Sensor passive, Ni1000 (JCI), Probe length 8″ [200 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5ER | Sensor | Air | Duct/Immersion Temperature Sensor passive, Ni1000 (JCI), Probe length 12″ [300 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5ET | Sensor | Air | Duct/Immersion Temperature Sensor passive, Ni1000 (JCI), Probe length 18″ [450 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5LH | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k (10k2), Probe length 2″ [50 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5LL | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k (10k2), Probe length 4″ [100 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5LN | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k (10k2), Probe length 6″ [150 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5LP | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k (10k2), Probe length 8″ [200 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5LR | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k (10k2), Probe length 12″ [300 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5LT | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k (10k2), Probe length 18″ [450 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5MH | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k3 (Precon), Probe length 2″ [50 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5ML | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k3 (Precon), Probe length 4″ [100 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5MN | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k3 (Precon), Probe length 6″ [150 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5MP | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k3 (Precon), Probe length 8″ [200 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5MR | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k3 (Precon), Probe length 12″ [300 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5MT | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC10k3 (Precon), Probe length 18″ [450 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5QH | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC20k, Probe length 2″ [50 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5QL | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC20k, Probe length 4″ [100 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5QN | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC20k, Probe length 6″ [150 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5QP | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC20k, Probe length 8″ [200 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5QR | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC20k, Probe length 12″ [300 mm], Probe diameter 0.24″ [6 mm] |
| 01DT-5QT | Sensor | Air | Duct/Immersion Temperature Sensor passive, NTC20k, Probe length 18″ [450 mm], Probe diameter 0.24″ [6 mm] |
| 01DTS-504 | Sensor | Air | Low Temperature Detection Sensor passive, Switch, Auto reset |
| 01DTS-504X | Sensor | Air | Low Temperature Detection Sensor passive, Switch, Manual reset |
| 01DTS-505 | Sensor | Air | Low Temperature Detection Sensor passive, Switch, Auto reset |
| 01DTS-505X | Sensor | Air | Low Temperature Detection Sensor passive, Switch, Manual reset |
