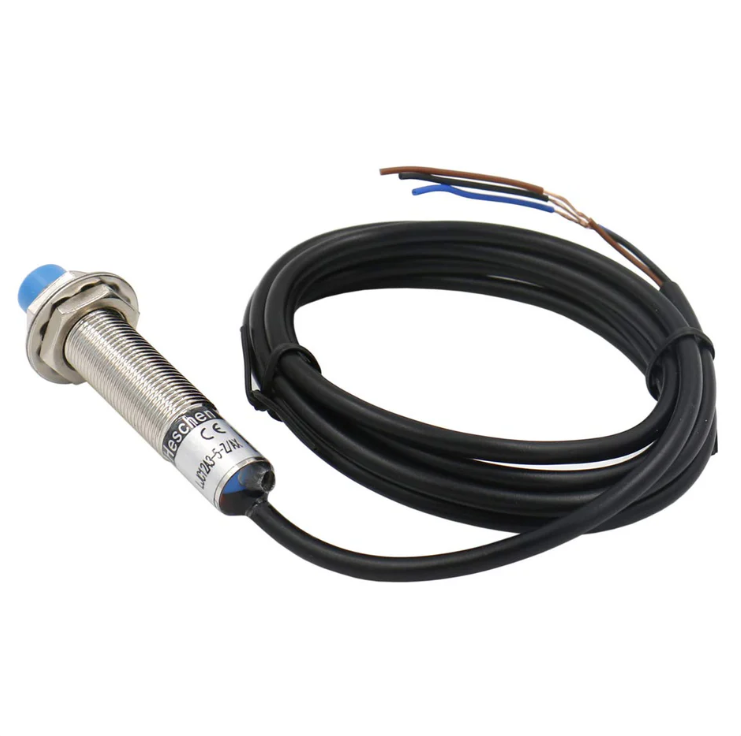

Capacitive Proximity Sensor Switch LJC12A3-5-Z/AX,
Detector 1-5mm 10-30 VDC 200mA NPN Normally Closed(NC) 3 wire.
The LJC12A3 capacitive proximity sensor switch used widely in automatic control industry for detecting,
controlling, and noncontact switching. It will send a signal when close to the plastic, glass, metal etc.
- mounting hole diameter: 12mm
- detecting distance: 5mm
- working voltage: 10-30 VDC, current output: 200mA
- output type: NPN NC(Normally Closed)
- cable length: 124cm/49.2″
