CHINT AX-5 Auxiliary Contact

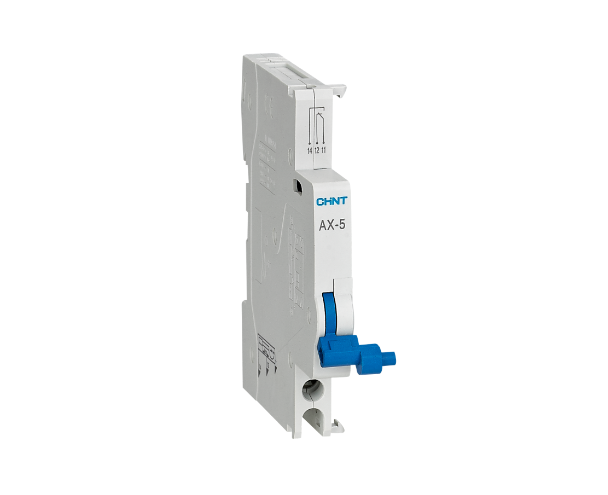

CHINT AX-5 Auxiliary Contact,
is an accessory designe for use with the NL1 Residual Current Circuit Breaker (RCCB).
It provides remote ON/OFF signal indication for AC and DC circuits, enhancing system monitoring and control.
Rate at 6A heating current and suitable for AC 415V or DC 130V, the AX-5 ensures reliable operation across diverse low-voltage applications.
Built to IEC 60947-5-1 and GB/T 14048.5 standards,
it offers high durability with over 10,000 operating cycles,
compact design, and straightforward DIN-rail mounting.

• Function: Remote indication of circuit breaker ON/OFF status (used with NL1 RCCB)
• Standards Compliance: GB/T 14048.5, IEC 60947-5-1, CE certified
• Rated Heating Current (Ith): 6 A
• Rated Voltage: AC 415 V / DC 130 V
• Rated Working Current:
  • AC-12: 415 V / 3 A; 240 V / 6 A
  • DC-12: 130 V / 1 A; 48 V / 2 A; 24 V / 6 A
• Mechanical Life: ≥10,000 operations
• Operating Temperature: –35°C to +70°C
• Relative Humidity: ≤95%
• Pollution Degree: Class II
• Altitude: ≤2000 m
• Mounting Method: DIN-rail mounted; installed on the side of NL1 RCCB
• Assembly Requirement: Remove left cover plate of the circuit breaker before installation (see Figure 2, p. P-063)
• Wiring Diagram: Shown in Figure 1 (p. P-063) — standard contact connection 14–12–11 for signal indication
• Overall Dimensions (mm): 78.1 × 81.5 × 45.1 (see Figure 3, p. P-064)
• Weight: Approx. 0.1 kg
• Typical Application: Modular DIN-rail systems in residential and commercial distribution panels
