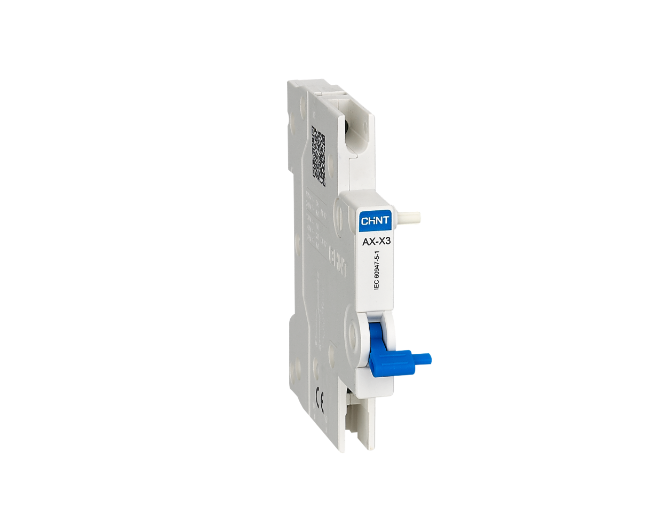

CHINT AX-X3 Auxiliary Contact ON/OFF status,
is designe to provide remote indication of circuit breaker ON/OFF status.
in addition When installe with NXB-125 and NXB-125G series circuit breakers,
furthermore it allows long-distance signal feedback for enhance monitoring and safety.
as a result it Built to IEC 60947-5-1 standards and certified by CE and RoHS, the AX-X3 offers a compact modular design, 10,000-cycle lifespan,
and reliable AC/DC performance, making it ideal for residential, commercial, and industrial applications
- Applicable Breakers: NXB-125, NXB-125G series
- Function: Provides remote signaling of the circuit breaker’s ON/OFF position
- Standard Compliance: IEC 60947-5-1
- Certifications: CE, RoHS
- Utilization Categories: AC-12, DC-12
- Rated Operating Voltage (Ue):
- AC 415V
- also AC 240V
- furthermore DC-130V
- in addition DC-48V
- moreover DC-24V
- Rated Operating Current (Ie):
- AC 415V: 3A
- AC 240V: 6A
- DC-130V: 1A
- DC-48V: 2A
- DC-24V: 6A
- Contact Operation:
- When the auxiliary contact is open, terminals 11–12 connecte.
- When the auxiliary contact is closed, terminals 11–14 connecte.
- Operating Life: 10,000 cycles
- Mounting Type: TH35-7.5 steel DIN rail
- Assembly Instructions:
- Remove the left cover on the circuit breaker.
- Attach the AX-X3 to the breaker.
- Mount the assembly on the DIN rail .
- Dimensions (mm):
- Height: 81.0 ±1.4
- Width: 9.0 ±0.18
- Mounting hole distance: 45 ±0.31 / 49.5 ±0.31
- Depth: 75.2 ±1.2
