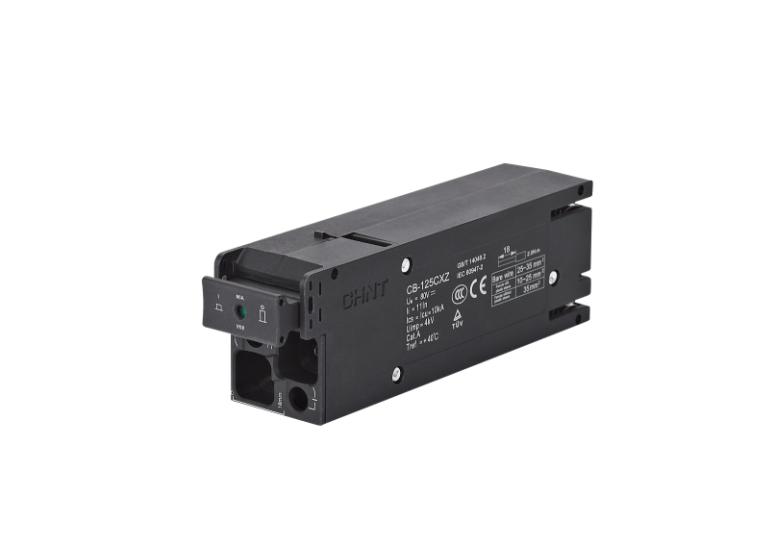

CHINT CB-125CXZ Moulded Case Circuit Breaker (MCCB)

CHINT CB-125CXZ Moulded Case Circuit Breaker (MCCB),
is a high-performance DC protection solution designe for power distribution and equipment safety.
furthermore Suitable for DC 80 V circuits up to 125 A,
in addition it offers reliable overload and short-circuit protection with a breaking capacity of 10 kA.
moreover Its thermomagnetic trip unit ensures quick, accurate fault response,
while the compact, plug-in design allows easy installation and maintenance.
consequently it is Certifie to IEC 60947-2 and approve by CE and TÜV, the CB-125CXZ ensures safe and stable DC system operation.

• Standard: IEC 60947-2
• however Certifications: CE, TÜV
• therefore Rate Current (In): 80 A / 100 A / 125 A
• consequently Rate Voltage (Ue): DC 80 V
• furthermore Poles: 1P
• and Trip Unit Type: Thermomagnetic
• in addition to Instantaneous Trip Current: 11 × In ± 20 %
• moreover Rated Short-Circuit Breaking Capacity (Icn): 10 kA
• Rated Service Short-Circuit Capacity (Ics): 10 kA
• Rated Isolation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mechanical Life: 10 000 operations
• Electrical Life: 4 000 operations
• Incoming Mode: Bottom feed
• Connection: Plug-in type
• Conductor Size: 10 – 35 mm²
• Tightening Torque: 2.0 N·m
• Wire Insertion Depth: 25 mm
• Operating Temperature: −40 °C to +70 °C
• Altitude: ≤ 2 000 m
• Pollution Degree: 3
• Protection Degree: IP20 (direct install) / IP40 (in distribution box)
• Applications: DC power supply systems, photovoltaic strings, and telecom power systems
