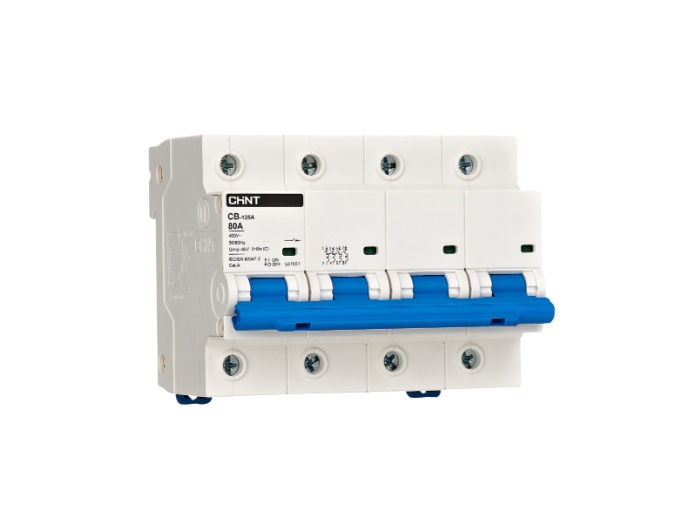

CHINT CB-125A Moulded Case Circuit Breaker (MCCB)

CHINT CB-125A Moulded Case Circuit Breaker (MCCB),
offers reliable overload and short-circuit protection for AC circuits up to 415 V and 125 A.
furthermore it is Designe with thermomagnetic trip technology,
also it delivers precise fault interruption and dependable performance in demanding power distribution systems.
moreover With a 6 kA breaking capacity, robust structure,
and plug-in installation, the CB-125A ensures safe, efficient operation in industrial, commercial,
finally infrastructure applications. Fully compliant with IEC/EN 60947-2 standards and certified by CE and TÜV.

• first Standard: IEC/EN 60947-2
• second Certifications: CE, TÜV
• specifically Rated Current (In): 80 A / 100 A / 125 A
• therefore Rated Operating Voltage (Ue):
  • 2P — AC 230/240 V
  • 3P / 3P+N / 4P — AC 400/415 V
• also Rated Insulation Voltage (Ui): 500 V
• furthermore Rated Impulse Withstand Voltage (Uimp): 6 kV
• moreover Rated Frequency: 50/60 Hz
• next Trip Unit Type: Thermomagnetic
• Instantaneous Trip Current: 8 × In ± 20 %
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• afterward Rated Service Short-Circuit Capacity (Ics): 6 kA
• in addition to Mechanical Life: 10,000 operations
• Electrical Life: 4,000 operations
• for example Connection: Top or bottom feed (cable or busbar compatible)
• Conductor Range: 10–35 mm²
• Tightening Torque: 2.0 N·m
• Wire Insertion Depth: 25 mm
• Mounting Type: Plug-in installation
• then Operating Temperature: −40 °C to +70 °C
• Altitude: ≤ 2,000 m
• specifically Pollution Degree: 3
• later Protection Degree: IP20 (direct) / IP40 (when installed in enclosure)
• finally Application Areas: Industrial control panels, power distribution boards, and motor protection systems
