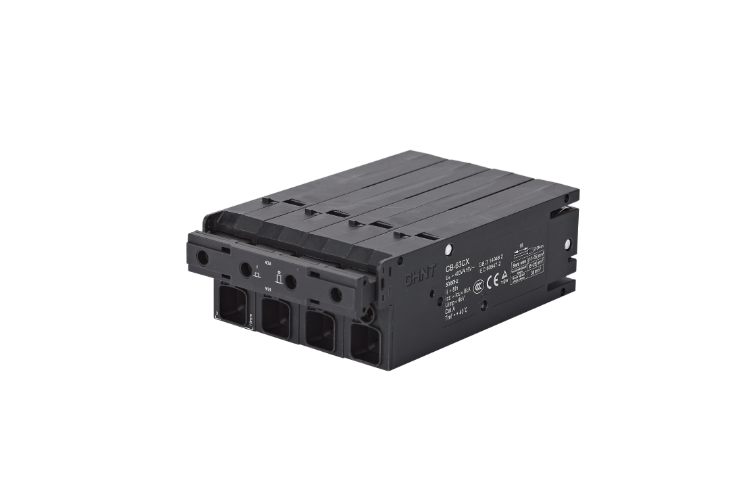

CHINT CB-63CX Moulded Case Circuit Breaker (MCCB)

CHINT CB-63CX Moulded Case Circuit Breaker (MCCB)

Add to wishlist
Category: Terminals & Bars
Brand: CHINT
Share: Facebook Twitter Tumblr Linkedin Whatsapp

You may also like

  • MITSUBISHI ELECTRIC RCCB with overload protection BV-DN 1PN 6A 30MA N

    MITSUBISHI ELECTRIC RCCB with overload protection BV-DN 1PN 6A 30MA N

  • PV-LY-T5 BRANCH CONNECTOR

    PV-LY-T5 BRANCH CONNECTOR

  • 6ES7155-6AU01-0BN0 SIMATIC ET 200SP, PROFINET interface module IM 155-6PN Standard, max. 32 I/O modules, and 16 ET 200AL

    6ES7155-6AU01-0BN0 SIMATIC ET 200SP, PROFINET interface module IM 155-6PN Standard, max. 32 I/O modules, and 16 ET 200AL

  • HS Group - Electrical Automation Products

    Schneider STO500 Outdoor Temperature Sensor 5141104010

  • Siemens QAC2030 Outdoor Air Temperature Sensor

    Siemens QAC2030 Outdoor Air Temperature Sensor

  • 1SBL101001R2010 / AS09-30-10-20 ABB AS09 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits

    1SBL101001R2010 / AS09-30-10-20 ABB AS09 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits

Description
Shipping & delivery

CHINT CB-63CX Moulded Case Circuit Breaker (MCCB),
is designe to deliver reliable overload and short-circuit protection for AC circuits up to 415 V and 63 A.
furthermore With thermomagnetic trip technology, a compact plug-in structure, and 6 kA breaking capacity,
in addition it ensures high safety and performance for power distribution systems.
moreover it is Build to IEC 60947-2 standards and certified by CE and TÜV, the CB-63CX MCCB provides durable,
and efficient circuit protection in commercial, industrial, and infrastructure applications.

  • Standard: IEC 60947-2
  • Certifications: CE, TÜV
  • Rated Current (In): 6, 10, 16, 20, 25, 32, 40, 50, 63 A
  • as a result Rated Voltage (Ue):
    • 2P: AC 230/240 V
    • 3P & 4P: AC 400/415 V
  • Poles: 2P / 3P / 4P
  • Trip Unit Type: Thermomagnetic
  • Instantaneous Trip Type: 8 × In ± 20 %
  • Rated Short-Circuit Breaking Capacity (Icn): 6 kA
  • Rated Service Short-Circuit Capacity (Ics): 6 kA
  • Rated Isolation Voltage (Ui): 500 V
  • Rated Impulse Withstand Voltage (Uimp): 4 kV
  • Mechanical Life: 10,000 operations
  • Electrical Life: 4,000 operations
  • Connection Method: Top or bottom feed lines (both acceptable)
  • consequently Conductor Range: 10–35 mm²
  • therefore Tightening Torque: 2.0 N·m
  • Wire Insertion Depth: 25 mm
  • afterward Installation Mode: Plug-in type, DIN-rail compatible
  • Operating Temperature: −40 °C to +70 °C
  • for instance Reference Temperature: 40 °C
  • similarly Altitude: ≤ 2000 m
  • likewise Pollution Degree: 3
  • before Protection Degree:
  • meanwhile Direct installation: IP20
  • later Installed in distribution box: IP40
  • finally Applications: Power distribution panels, industrial control systems, and branch circuit protection.
